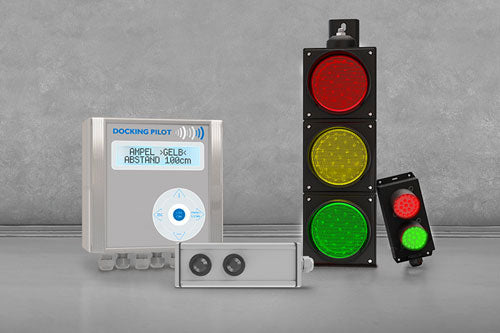

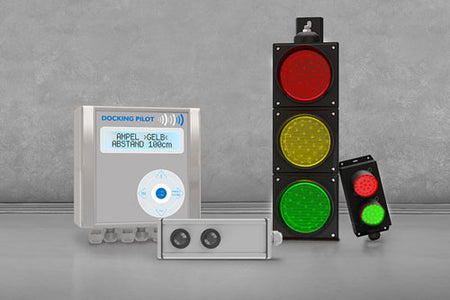

Docking pilot set with sensor

The intelligent truck docking aid for loading ramps. Working around loading ramps, dock levellers, and docking stations is one of the most hazardous zones in warehouse logistics — and most of the damage happens in the final few centimetres of reversing. The Docking Pilot Set with Sensor gives drivers a clear red–yellow–green LED signal and brings every truck to a standstill at exactly the right point. How it works. The mounted ultrasonic sensor continuously measures the vehicle-to-ramp distance, down to the centimetre. A connected LED driver traffic light (sold separately) shows green while the driver may approach, yellow on final approach, and red at the optimal docking position. After loading or unloading, a single button-press on the control unit flashes the light green to release the truck — eliminating premature roll-outs that can cause serious accidents and costly damage. Integration you can build on. Three freely configurable relay outputs drive gate openers, mechanical or inflatable door-seal systems, ramp and loading-area lighting, or a staff signal — switched automatically the moment the docking position is reached. A 24 V DC output feeds an optional personnel traffic light for your warehouse crew. Three freely configurable control inputs allow permanent-red while the gate is open, remote departure release via an external button, and any custom logic your site needs. All parameters — stop distances, yellow-to-red thresholds, operating language (DE · EN · FR · ES), idle-time schedules — are entered on the keypad and shown live on the backlit 2 × 16-character LCD alongside the current vehicle distance. Set contents. One Docking Pilot control unit (IP 65, ABS housing, 100–240 V AC, 160 × 160 × 90 mm) and one ultrasonic sensor unit (IP 65, –20 °C to +65 °C, 135 × 60 × 35 mm, mounting bracket and connection cable included). To complete the installation you will also need: one LED driver traffic light (Ø 100 mm for light-duty sites, Ø 200 mm for road-traffic visibility). Optional: a Ø 50 mm personnel traffic light for the loading-dock staff. Add these as separate line items in your request basket. Recommended as a technical safety measure by employer-liability associations and accident-insurance providers.
