Guardian Impact - impact and tipping detector

Guardian Impact - impact and tipping detector

Guardian Impact is a compact monitoring unit for temporary traffic management equipment. Mounted on a barrier, sign, lamp or other roadworks device, it detects collisions and tip-over events and sends an immediate notification to the responsible personnel in the mobile app. A struck or wind-toppled unit is dealt with at once instead of being discovered at the next inspection round, which shortens response times and reduces exposure to live traffic.

Every unit reports its GPS location and status at all times, stays constantly on standby and gives immediate notification of faults. Low battery alerts and battery life forecasting keep the fleet running, and all devices are managed from the mobile and web app.

Features

• Impact sensor with adjustable sensitivity

• Alerts on collision or tip-over

• Current location and status at all times, constantly on standby

• Immediate notification of faults

• GPS location tracking

• Adjustable update intervals

• Low battery alerts and battery life forecasting

• Mobile and web app access

Technical data

• Power supply: rechargeable battery (approx. 6 months life) or external 12 V

• Enclosure: weather-resistant

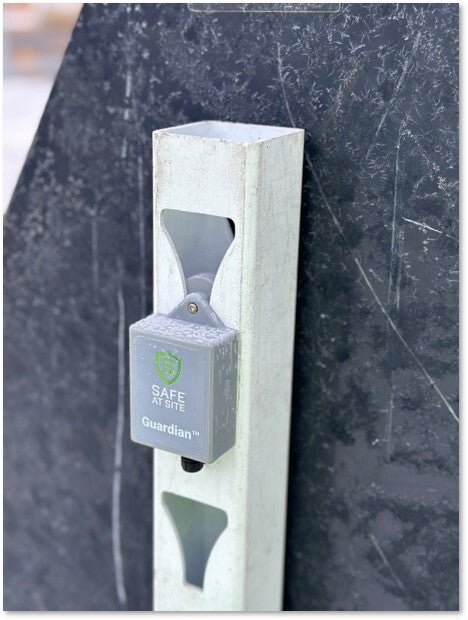

• Mounting: screw, magnet or keyhole mount

• Dimensions: 50 x 65 x 25 mm

• Weight: 100 g

Fields of application

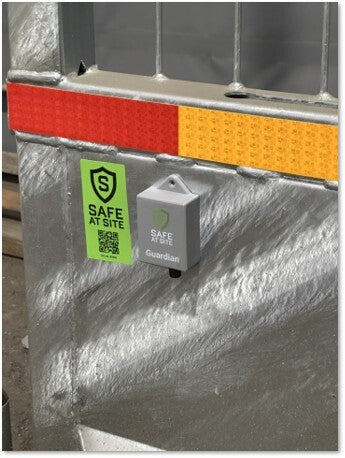

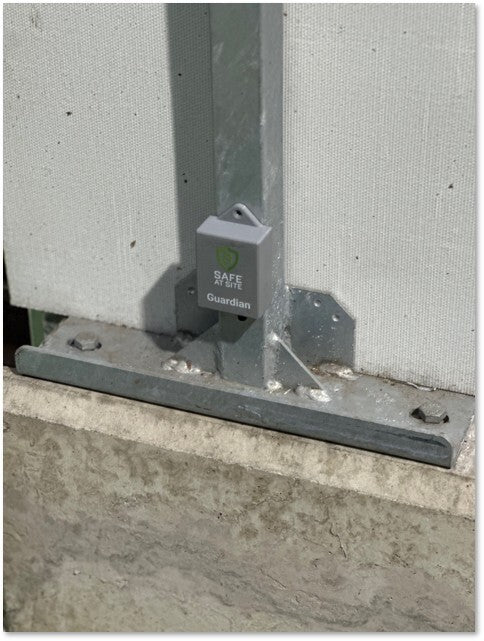

Barriers, signs, warning lamps and other temporary traffic management devices at roadworks where displacement or damage must be detected immediately. Part of the Guardian digital roadworks monitoring family alongside Guardian Power (battery monitoring unit, includes all Guardian Impact functions) and Guardian Watch (area monitoring and alert unit).
