RAV laser scanner 25 x 25 m, fixed system

RAV laser scanner 25 x 25 m, fixed system

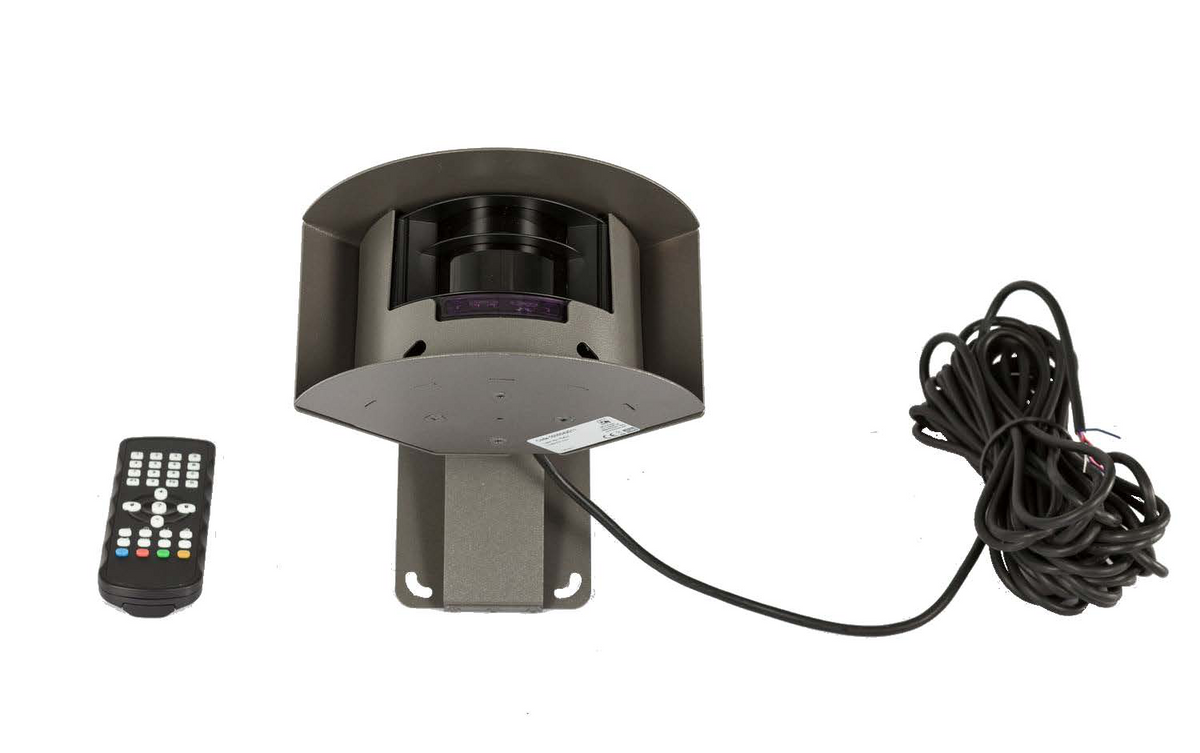

Infrared laser scanner for the RAV overheight vehicle detection system. A single sensor mounted at the roadside scans the approach and reports any vehicle exceeding the set height to the RAV control unit, which then activates flashers, traffic lights, a message panel or a siren. Detection length, width and the minimum object size are set with the supplied IR remote control.

Features

• Detection area up to 25 x 25 m

• Motion and presence detection

• Programmable via IR remote control (included)

• Status LEDs: blue power on, orange error, two bi-colour detection/output LEDs

• Painted stainless steel case and mounting plate (included)

• Wall, 60 mm pole, 90 mm pole or band-it mounting (pole brackets ordered separately)

Technical data

• Power supply: 10-35 Vdc

• Power consumption: less than 5 W

• Wiring: 10 m multipolar cable

• Insulation class: Class III

• Operating temperature: -30 °C to +60 °C

• IP protection: IP65

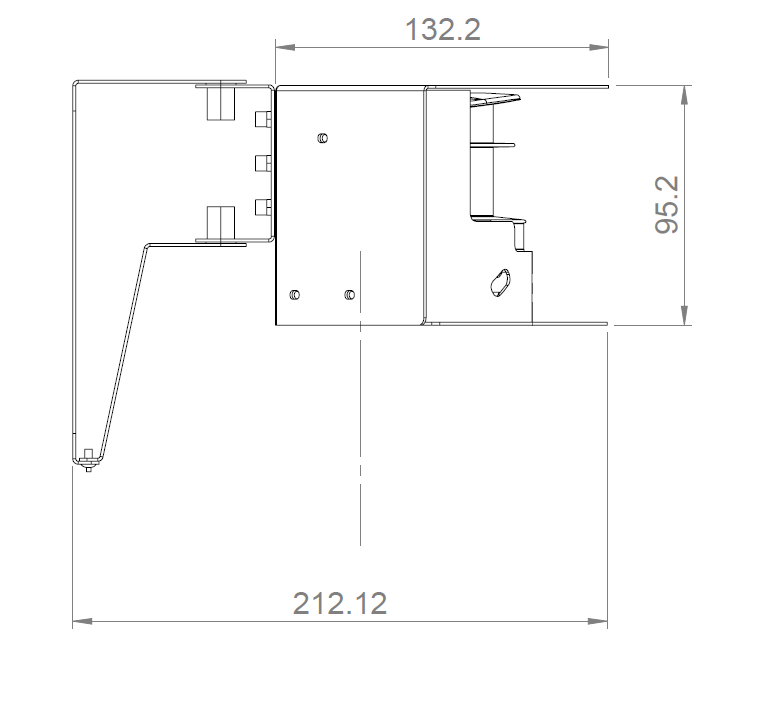

• Dimensions: 188.37 x 152.4 x 212.12 mm (without brackets)

• Weight: 2.5 kg (cable included)

• Materials: PC/ASA (laser), painted stainless steel (case and plate)

Fields of application

Underpasses, tunnels, overpasses, car park entrances and any site where exceeding the maximum height is a hazard. For the fixed RAV system with the RAV control unit.
