RAV laser scanner 25 x 25 m, mobile system

RAV laser scanner 25 x 25 m, mobile system

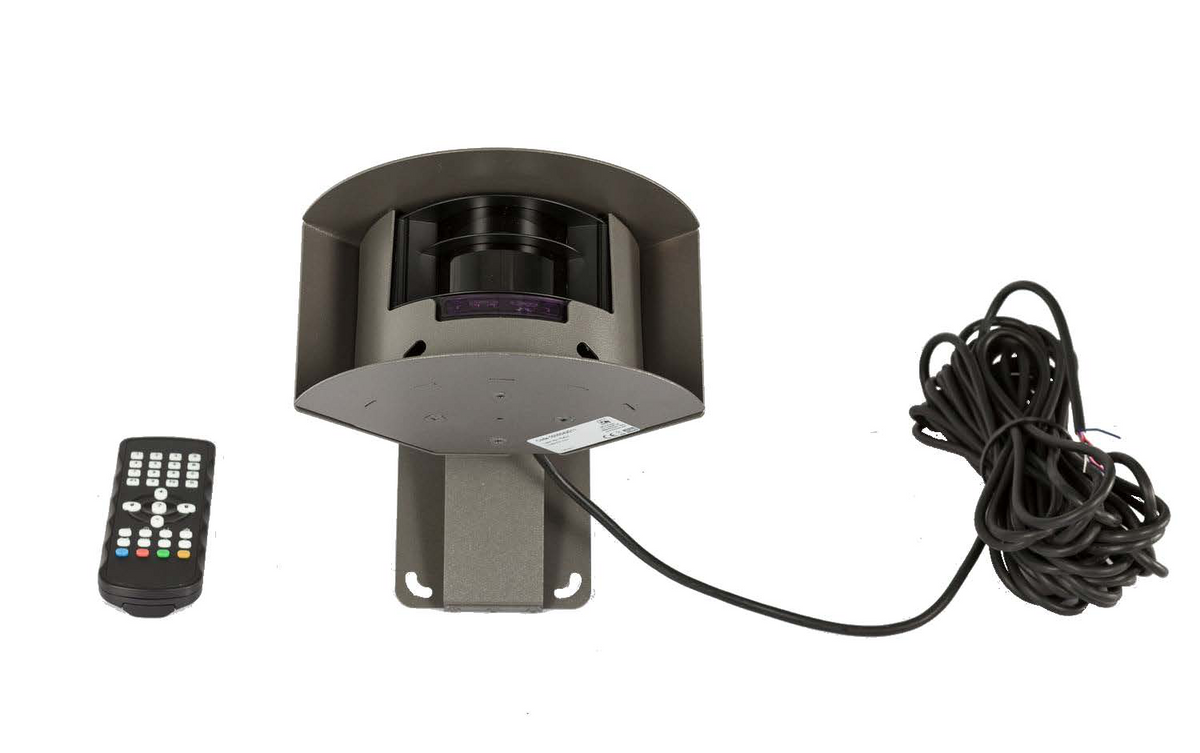

Infrared laser scanner for the RAV mobile overheight vehicle detection system, fitted with a THB 4P plug connector for quick connection to the RAV mobile master and slave control units. A single roadside sensor scans the approach and reports any vehicle exceeding the set height. Detection length, width and the minimum object size are set with the supplied IR remote control.

Features

• Detection area up to 25 x 25 m

• THB 4P connector for RAV mobile control units

• Motion and presence detection

• Programmable via IR remote control (included)

• Status LEDs: blue power on, orange error, two bi-colour detection/output LEDs

• Painted stainless steel case and mounting plate (included)

• Wall, 60 mm pole, 90 mm pole or band-it mounting (pole brackets ordered separately)

Technical data

• Power supply: 10-35 Vdc

• Power consumption: less than 5 W

• Insulation class: Class III

• Operating temperature: -30 °C to +60 °C

• IP protection: IP65

• Dimensions: 188.37 x 152.4 x 212.12 mm (without brackets)

• Weight: 2.5 kg (cable included)

• Materials: PC/ASA (laser), painted stainless steel (case and plate)

Fields of application

Temporary overheight detection at roadworks, site entrances and temporary structures, used with the RAV mobile master and slave control units.
