LP15 105 LHS (radio) 200mm LED 2x105x105cm double-sided, vertical lift

LP15 105 LHS (radio) 200mm LED 2x105x105cm double-sided, vertical lift

Vehicle-mounted warning arrow for directing traffic around roadworks, incidents and lane closures. The 105 x 105 cm panel is the standard size for vehicles of all weight classes and complies with Danish roadworks regulation BEK 393/2025.

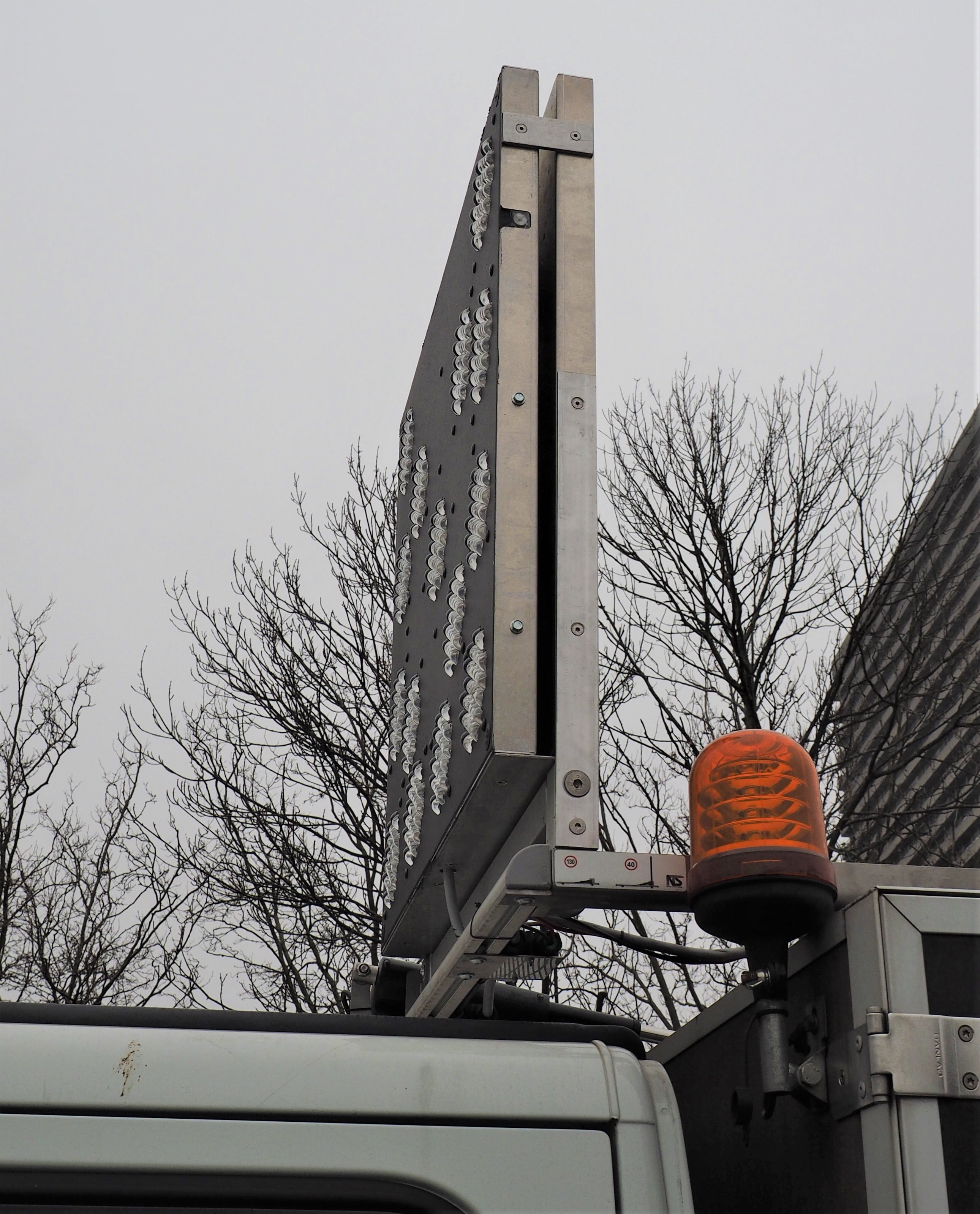

An electric vertical lift raises the panel from the pickup bed behind the driver cab to working height. Two panels are mounted back-to-back for simultaneous forward and rear visibility.

Features

• 15 amber Ø200 mm LED lamps, EN 12352 class L8H, 2200 cd each, per side

• Display modes: cross, arrow left, arrow right, corner lamps

• Photosensor-driven 5-level automatic dimming

• RS485 canbus control with back-lit operator panel

• Electric vertical lift for pickup-bed mounting behind the driver cab, carrying two panels back-to-back

• Prepared for radio remote control (select the 2x4 or 3x5 radio transmitter separately)

Technical data

• Panel size: 2 x 1050 x 1050 mm (one panel per side)

• Lamps: 15 x Ø200 mm amber LED, EN 12352 L8H, 2200 cd, 0.89 A per lamp, per side

• Average power consumption (daylight, 12 V): approx. 6.4 A / 77 W (both sides), max. 9 lamps lit, lamps only, 1.5 s cycle with 0.6 s lit

• Supply voltage: 12 V (24 V via external converter kit)

• Housing: matte-black aluminium with stainless-steel frame

• Weight: approx. 90 kg (two panels, frame, actuator)

Fields of application

Road maintenance vehicles, utility trucks and contractor vans working on or beside live traffic.
