LP15 105 LHS (cable) 200mm LED 105x105cm vertical lift + side slide

LP15 105 LHS (cable) 200mm LED 105x105cm vertical lift + side slide

Vehicle-mounted warning arrow for directing traffic around roadworks, incidents and lane closures. The 105 x 105 cm panel is the standard size for vehicles of all weight classes and complies with Danish roadworks regulation BEK 393/2025.

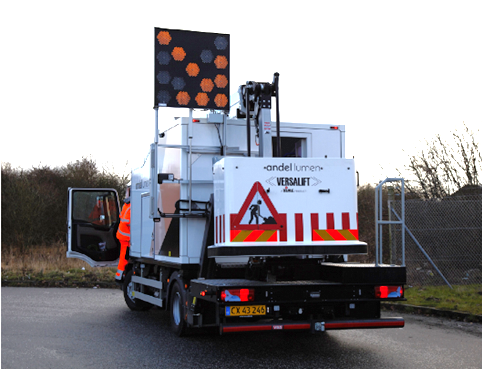

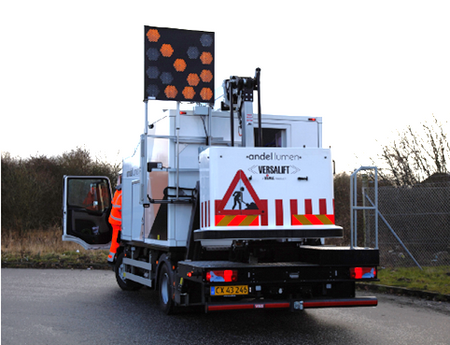

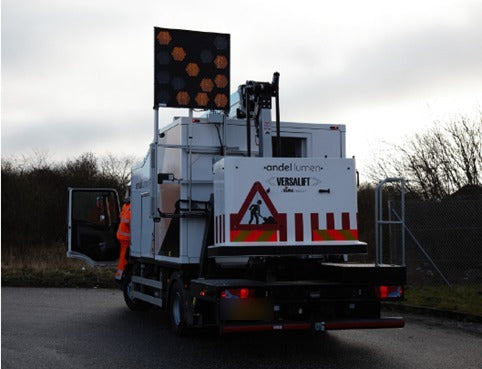

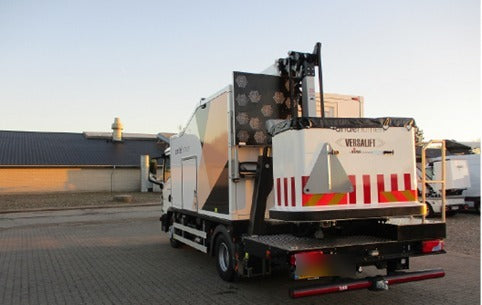

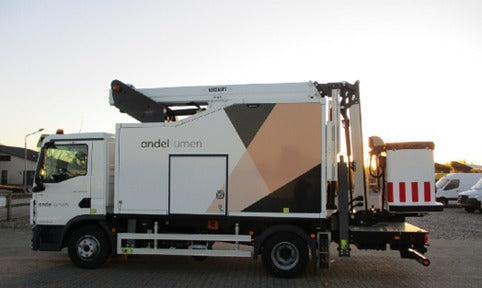

An electric vertical lift raises the panel from the pickup bed behind the driver cab to working height. An integrated side slide moves the panel sideways for positioning over the vehicle outline.

Features

• 15 amber Ø200 mm LED lamps, EN 12352 class L8H, 2200 cd each

• Display modes: cross, arrow left, arrow right, corner lamps

• Photosensor-driven 5-level automatic dimming

• RS485 canbus control with back-lit operator panel

• Electric vertical lift for pickup-bed mounting behind the driver cab, with integrated side slide

• Prepared for cable remote control (select the 2x4 or 3x5 cable hand controller separately)

Technical data

• Panel size: 1050 x 1050 mm

• Lamps: 15 x Ø200 mm amber LED, EN 12352 L8H, 2200 cd, 0.89 A per lamp

• Average power consumption (daylight, 12 V): approx. 3.2 A / 38 W, max. 9 lamps lit, lamps only, 1.5 s cycle with 0.6 s lit

• Supply voltage: 12 V (24 V via external converter kit)

• Housing: matte-black aluminium with stainless-steel frame

• Weight: approx. 55 kg (including side-slide frame)

Fields of application

Road maintenance vehicles, utility trucks and contractor vans working on or beside live traffic.
