LP15 105 HHS BASt (cable) 200mm LED 105x105cm folding frame

LP15 105 HHS BASt (cable) 200mm LED 105x105cm folding frame

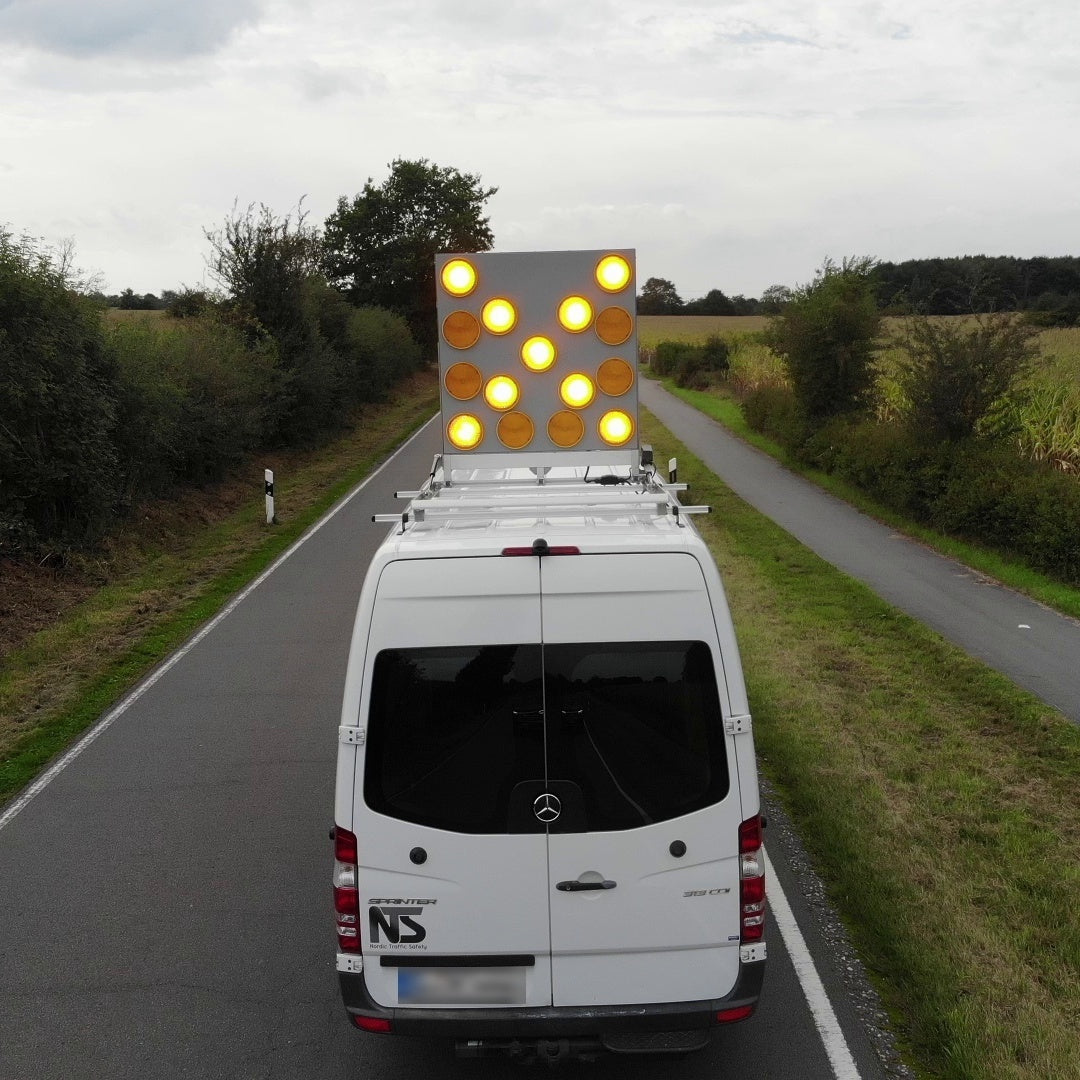

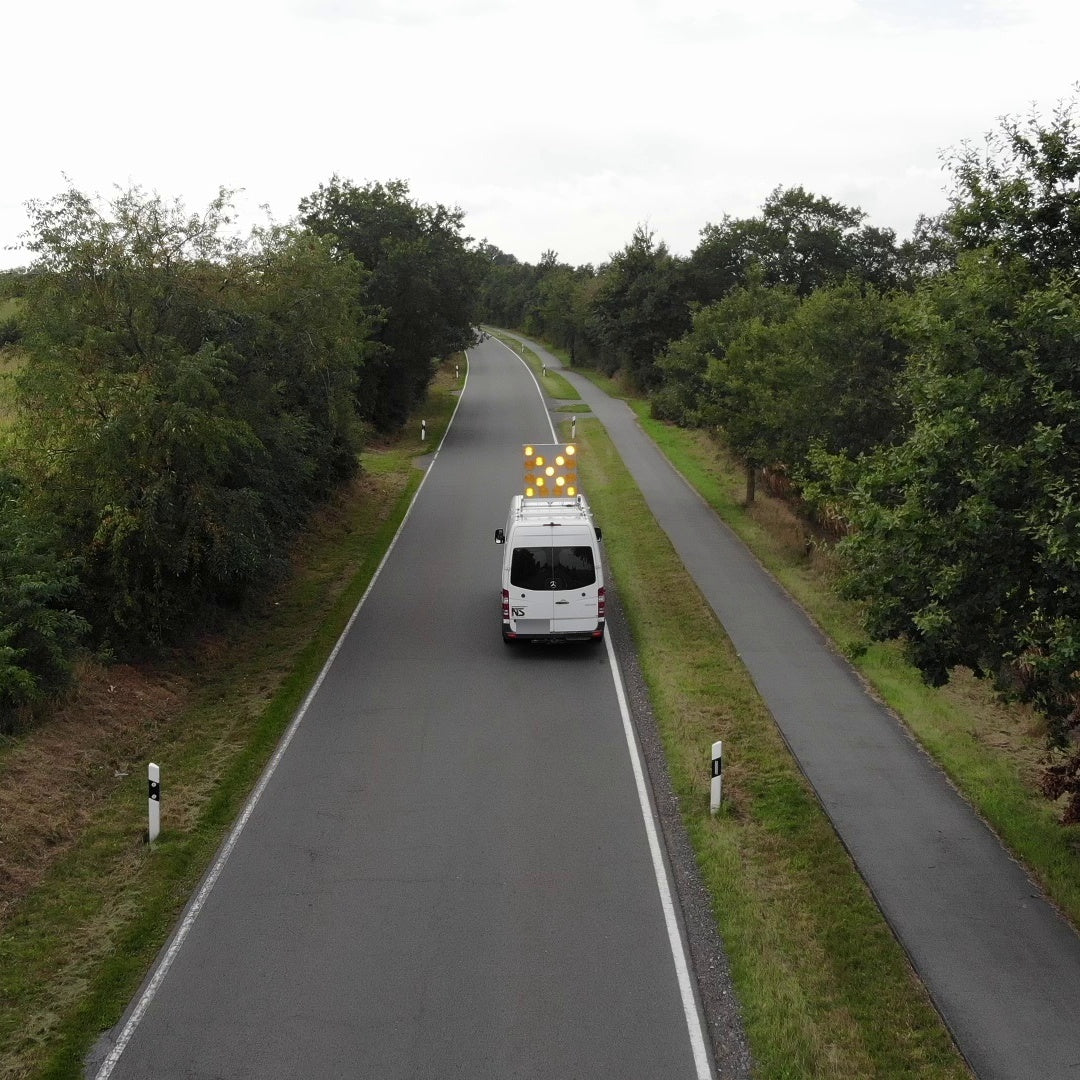

Vehicle-mounted warning arrow with BASt-approved lamps for directing traffic around roadworks, incidents and lane closures. It is built for markets that require BASt-approved lighting, on the standard 105 x 105 cm panel.

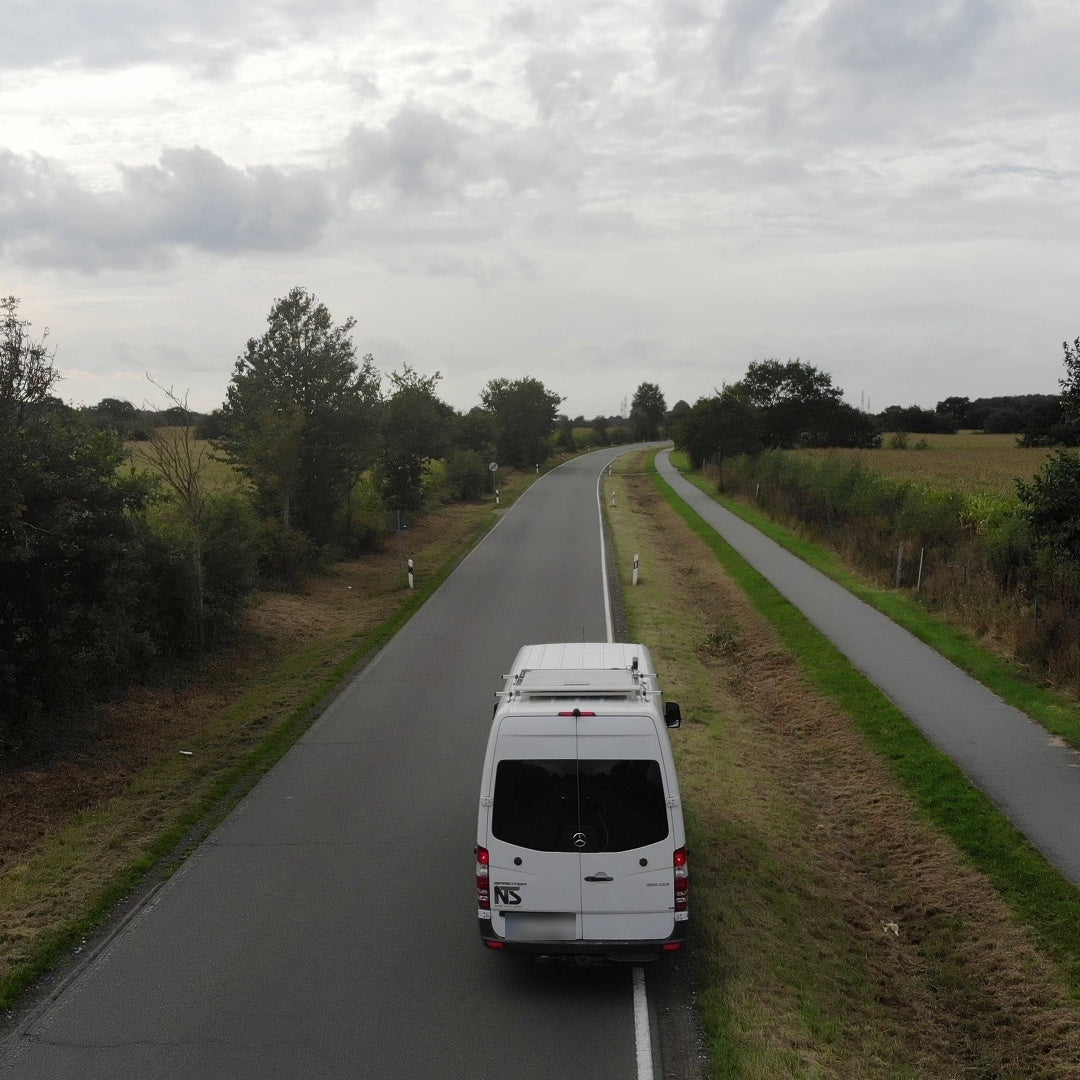

The panel sits on an electric folding frame on the roof or roof rack. It folds flat for transport and raises to working position at the push of a button.

Features

• 15 amber Ø200 mm BASt-approved LED lamps, each with one high-power LED

• Lamps controlled by the LP15 control unit, with 5-level automatic dimming from the panel photosensor

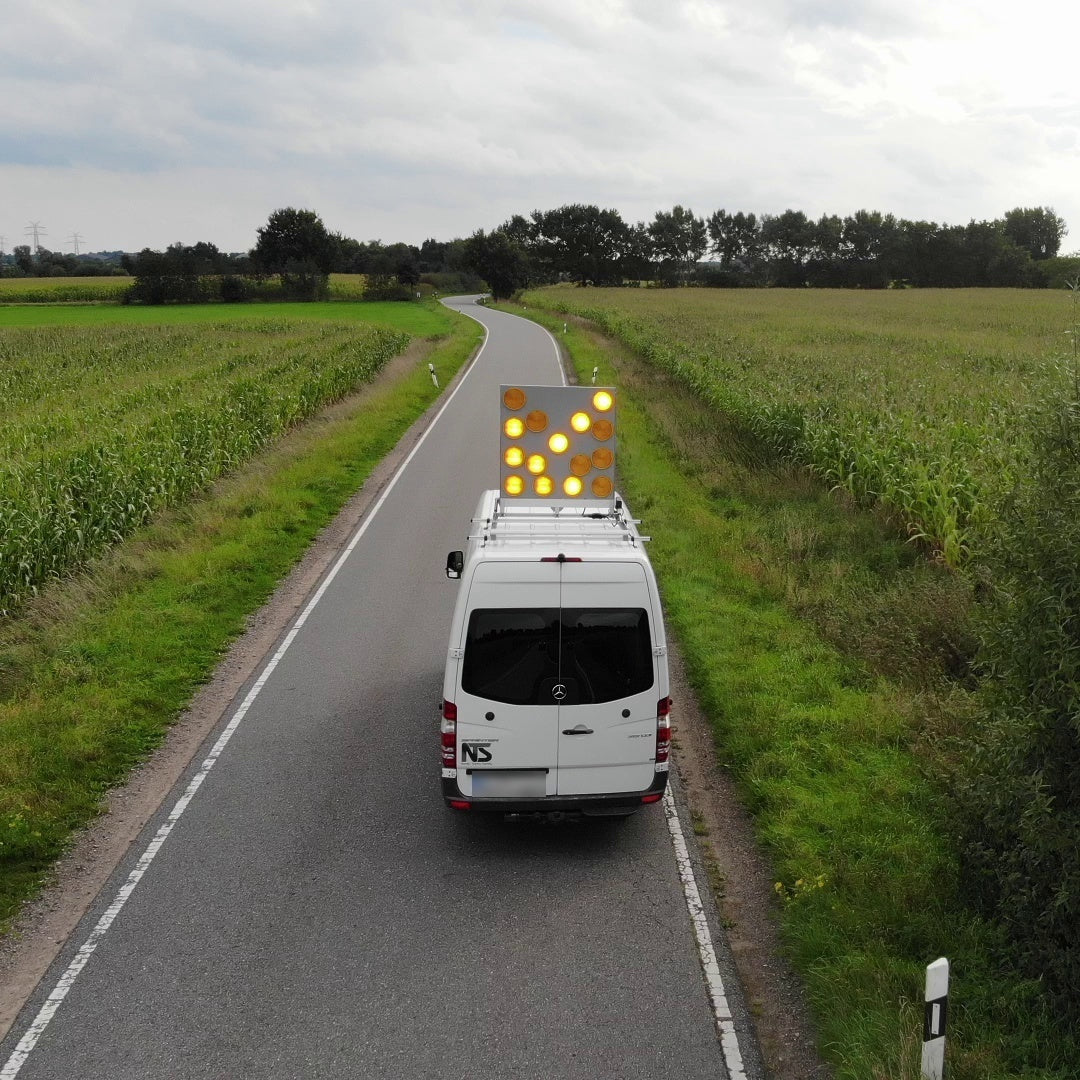

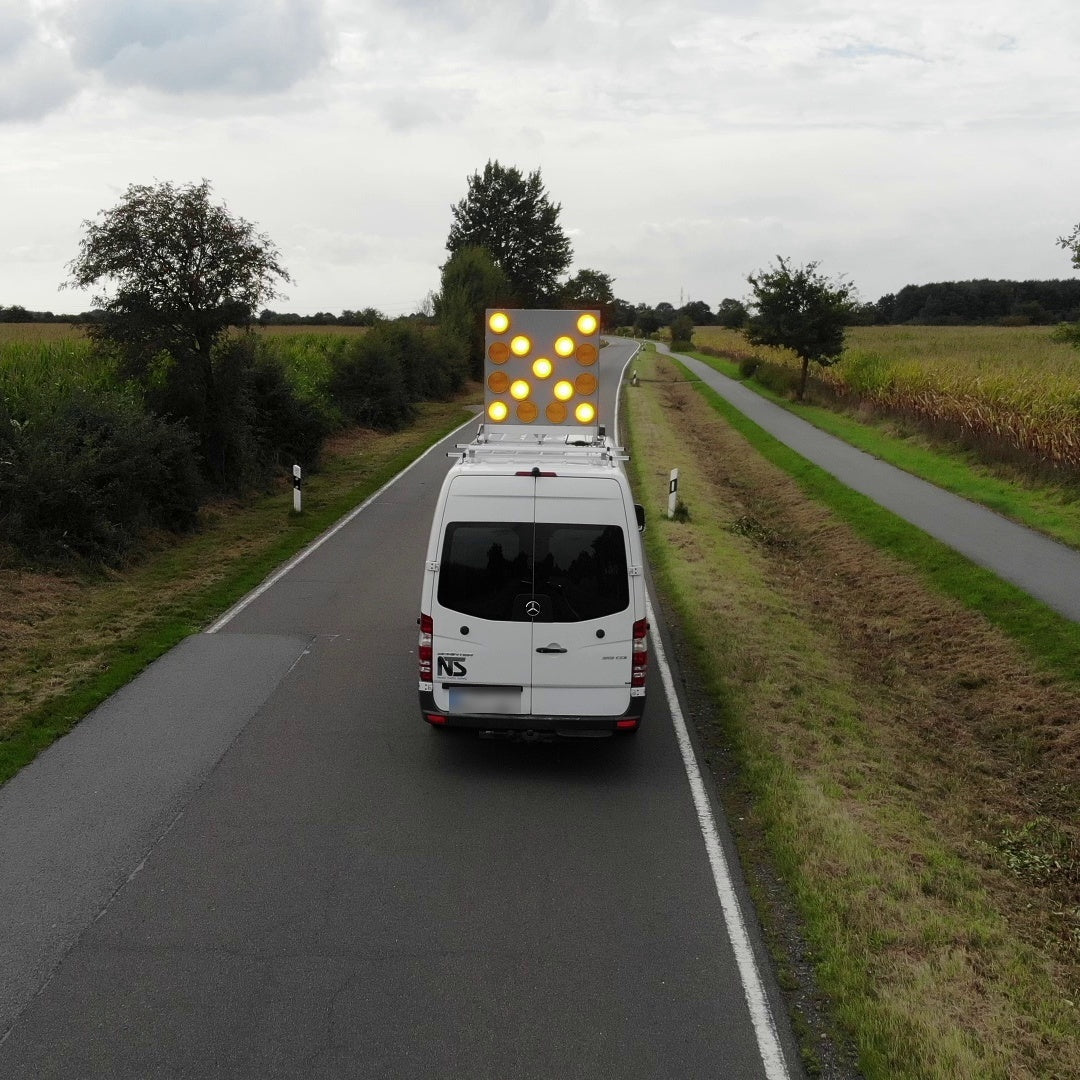

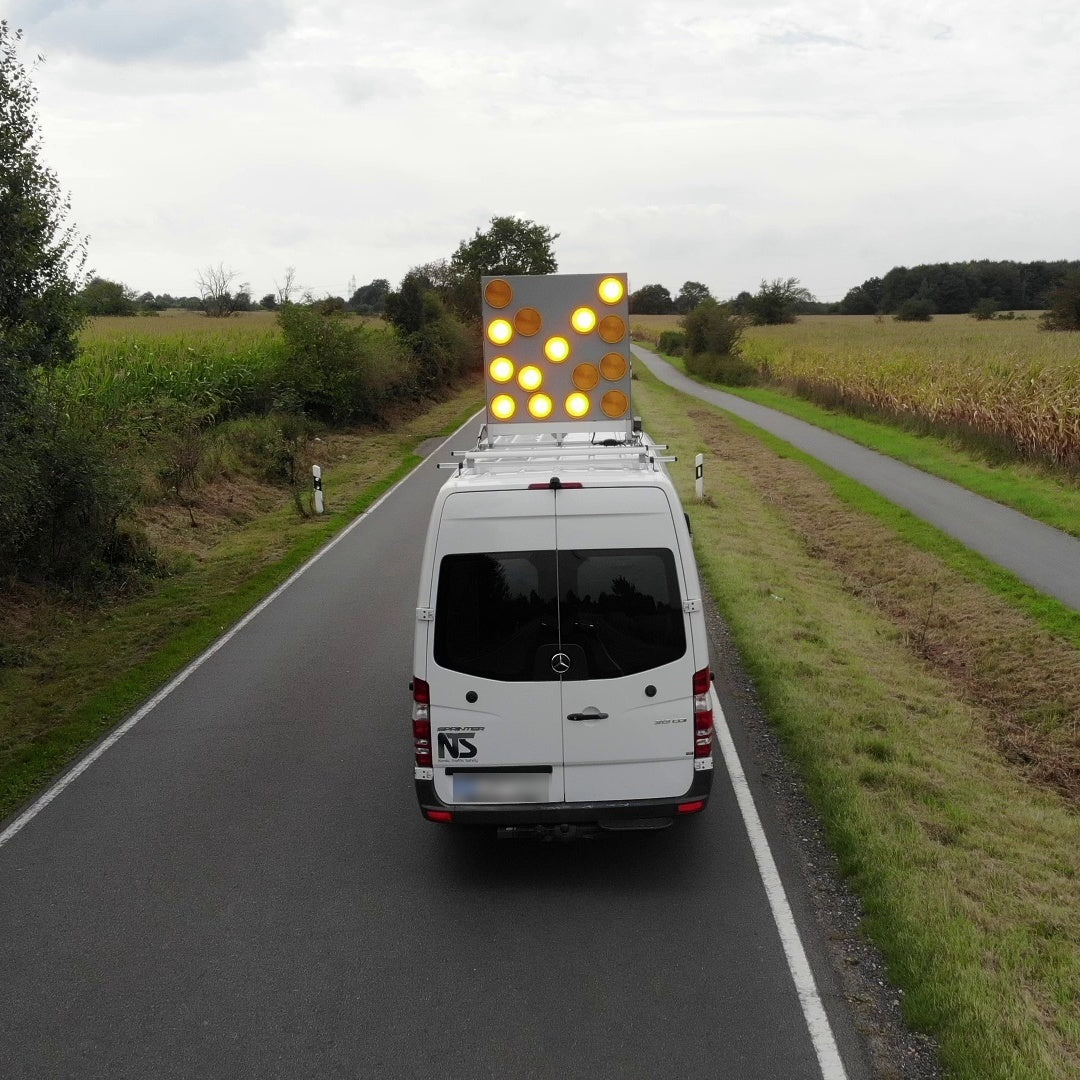

• Display modes: cross, arrow left, arrow right, corner lamps

• RS485 canbus control with back-lit operator panel

• Electric horizontal folding frame for roof or roof-rack mounting

• 12 V and 24 V direct, no converter needed

• Prepared for cable remote control (select the 2x4 or 3x5 cable hand controller separately)

Technical data

• Panel size: 1050 x 1050 mm

• Lamps: 15 x Ø200 mm amber LED, EN 12352 L8H/L8M, BASt V3-024/2020 and V3-010/2021

• Lamp protection: IP44, reverse polarity protection

• Operating temperature: -35 °C to +45 °C

• Supply voltage: 12 V / 24 V

• Housing: matte-black aluminium with stainless-steel brackets

• Weight: approx. 36 kg

Fields of application

Road maintenance and contractor vehicles for markets that require BASt-approved warning lamps, such as Germany.
