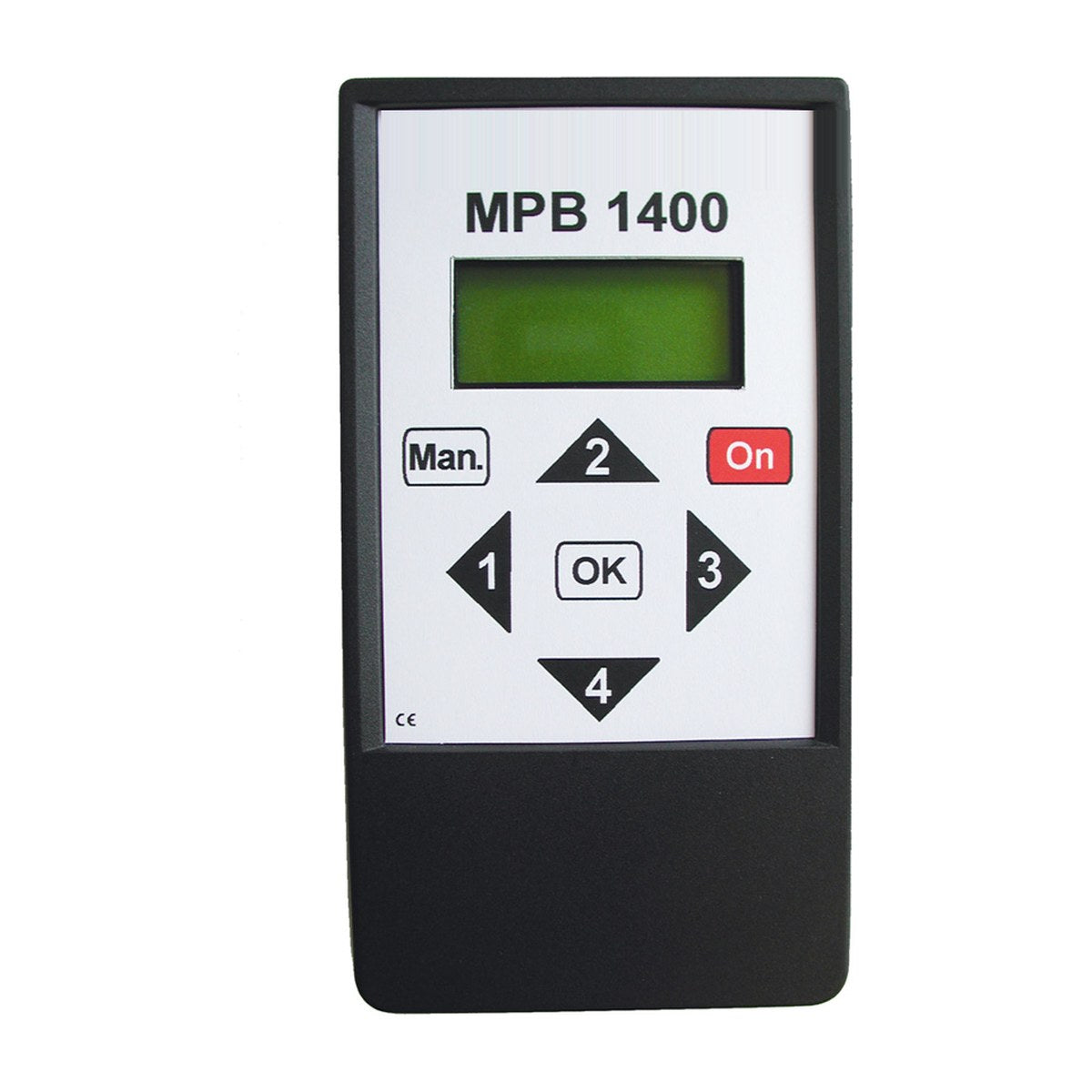

MPB 1400 infrared handbox for programming

MPB 1400 infrared handbox for programming

The handbox is needed to set up and operate MPB 1400 traffic lights. It guides the user through the menu in a simple dialogue: choose the type of control, enter the red and green phases, then send the data to each signal head by infrared.

The infrared code protects the installation against unauthorised access. One handbox programs any number of MPB 1400 signal heads, and data can be prepared away from the site. The handbox is delivered with a language package of three menu languages, chosen when ordering.

Features

• Language package of 3 menu languages, chosen at order from German, English, French, Italian, Spanish, Dutch, Turkish (other languages on request)

• Red and green phases up to 999 s, set separately for each signal

• Control types: alternating one-way traffic, T-junction, crossroads, parallel signal heads

• Manual mode: continuous red, continuous green, flashing amber, lamps off

• User code 0-999 against tampering

• Backlit display

Technical data

• Transmission: coded infrared

• Power supply: 9 V block battery

Fields of application

Programming and manual operation of all MPB 1400 traffic light installations.
