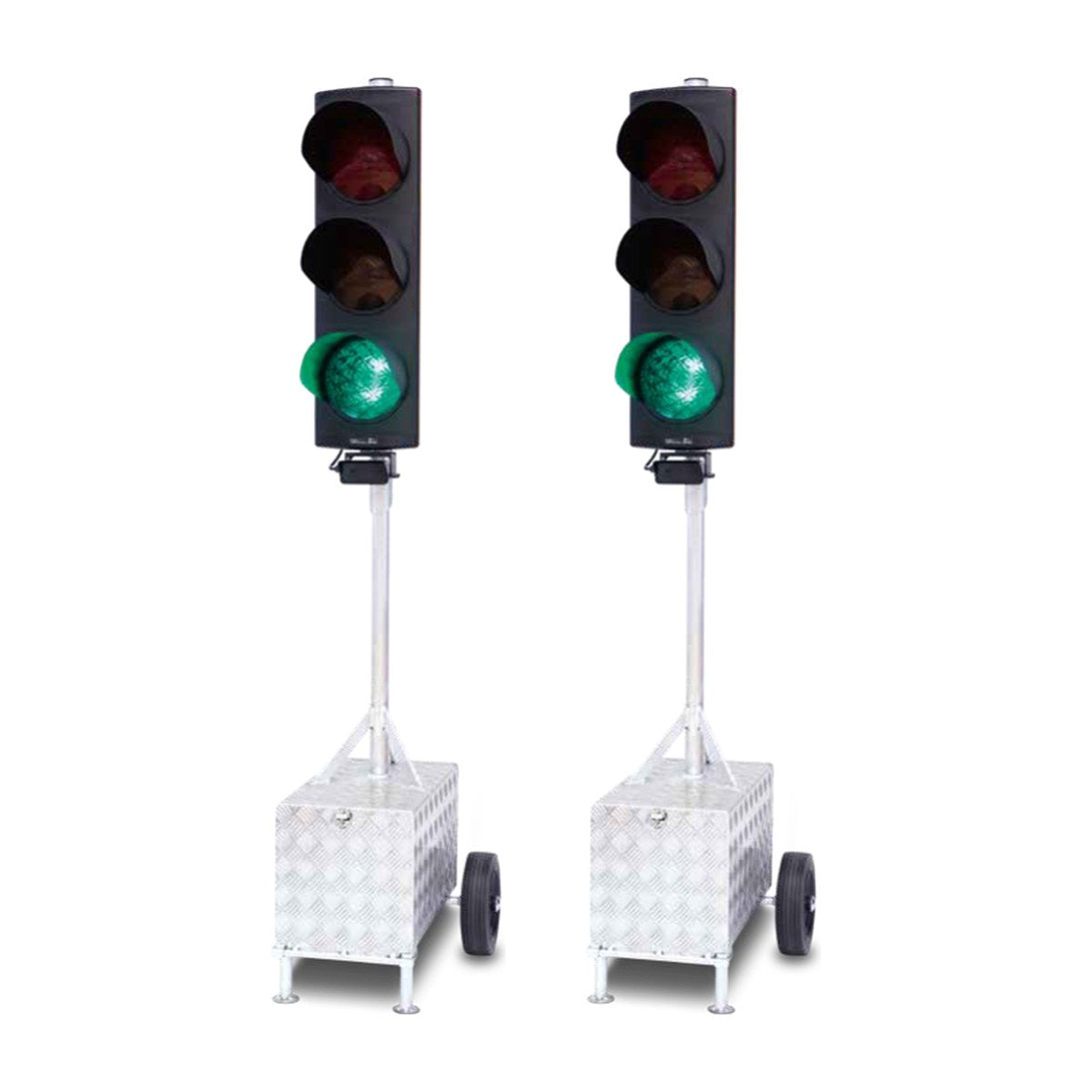

MPB 1400 LED traffic light system, 2 signal heads, GPS synchronised

MPB 1400 LED traffic light system, 2 signal heads, GPS synchronised

A low-cost mobile traffic light system for roadworks. The set controls alternating one-way traffic and can be extended for T-junctions or crossroads by adding further identical signal heads, where national regulations permit.

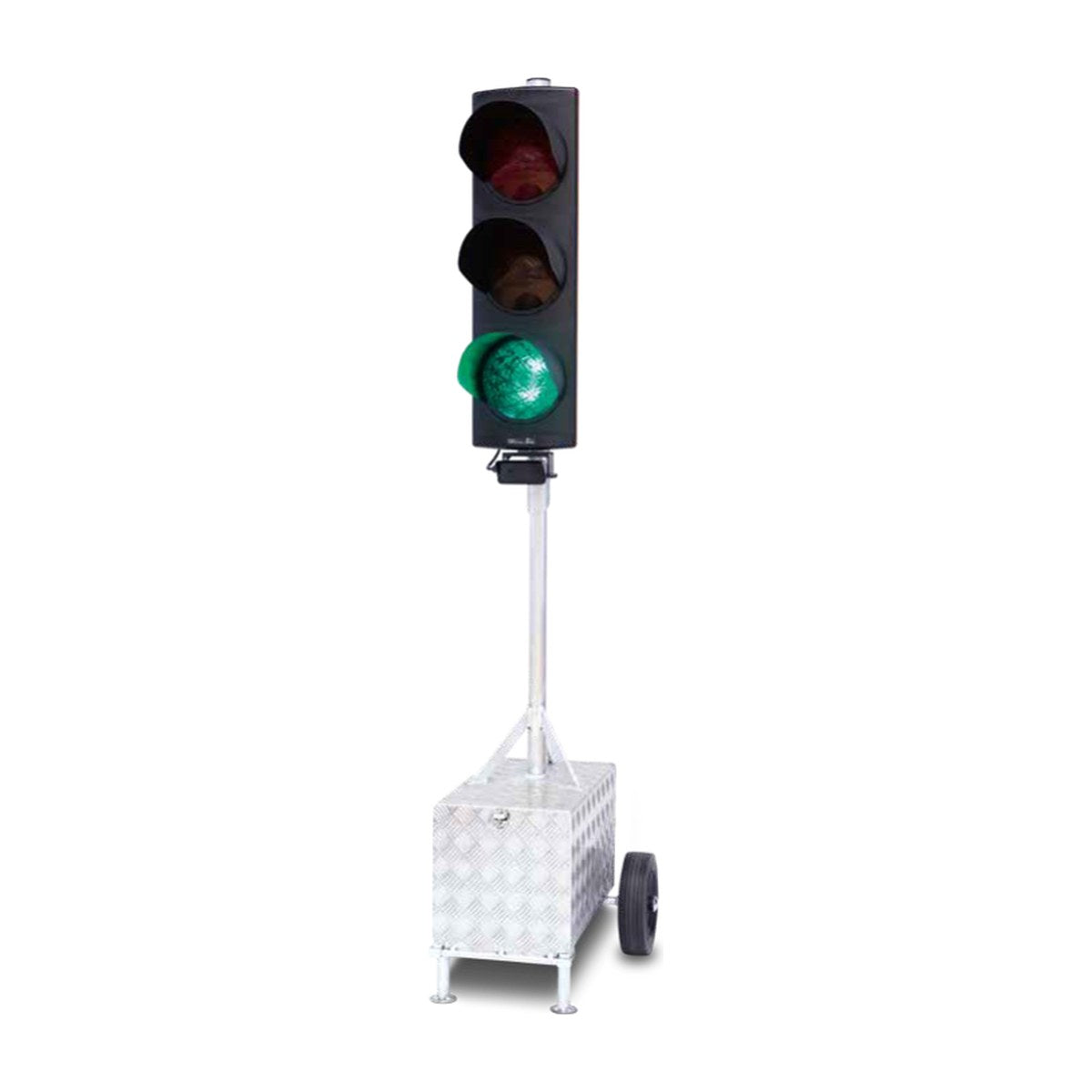

Each signal head comes complete with an aluminium mounting tube and an aluminium battery casing on solid rubber wheels. All settings are made with the coded infrared handbox, which is sold separately: enter the red and green phase for each signal, send the data, and the system runs GPS synchronised.

Features

• Two flat LED signal heads with integrated control, mounting tube and battery casing

• GPS synchronisation for an exact phase cycle at all times

• Menu-guided programming with one handbox for any number of signal heads (7 menu languages available)

• Manual operation for tree felling and special traffic situations

• Automatic night-time dimming extends the battery change interval

• Program is kept during battery change (change within 5 minutes)

• Modular housing: only the defective part needs replacing

• Optional red countdown display, fitted ex works or retrofitted

Technical data

• Operating voltage: approx. 10-14 V DC (electronic on/off switch)

• Current consumption: approx. 0.15 A on average per signal head (LED)

• Light source: LED, photometrically tested to DIN EN 12368, automatic night-time dimming (photocell)

• Lenses: red, amber, green, 210 mm, flat 3-chamber signal head

• Control: quartz controlled fixed-time operation, GPS synchronised

• Red and green phases: up to 999 s, set separately for each signal

• Control modes: alternating one-way traffic, T-junction, crossroads, parallel signal heads

• Manual modes: continuous red, continuous green, flashing amber, lamps off

• Protection: reverse polarity, undervoltage, data buffering during battery change (max. 5 minutes)

• Access protection: user code 0-999

• Power supply: 12 V battery (not included), placed in the battery casing

Fields of application

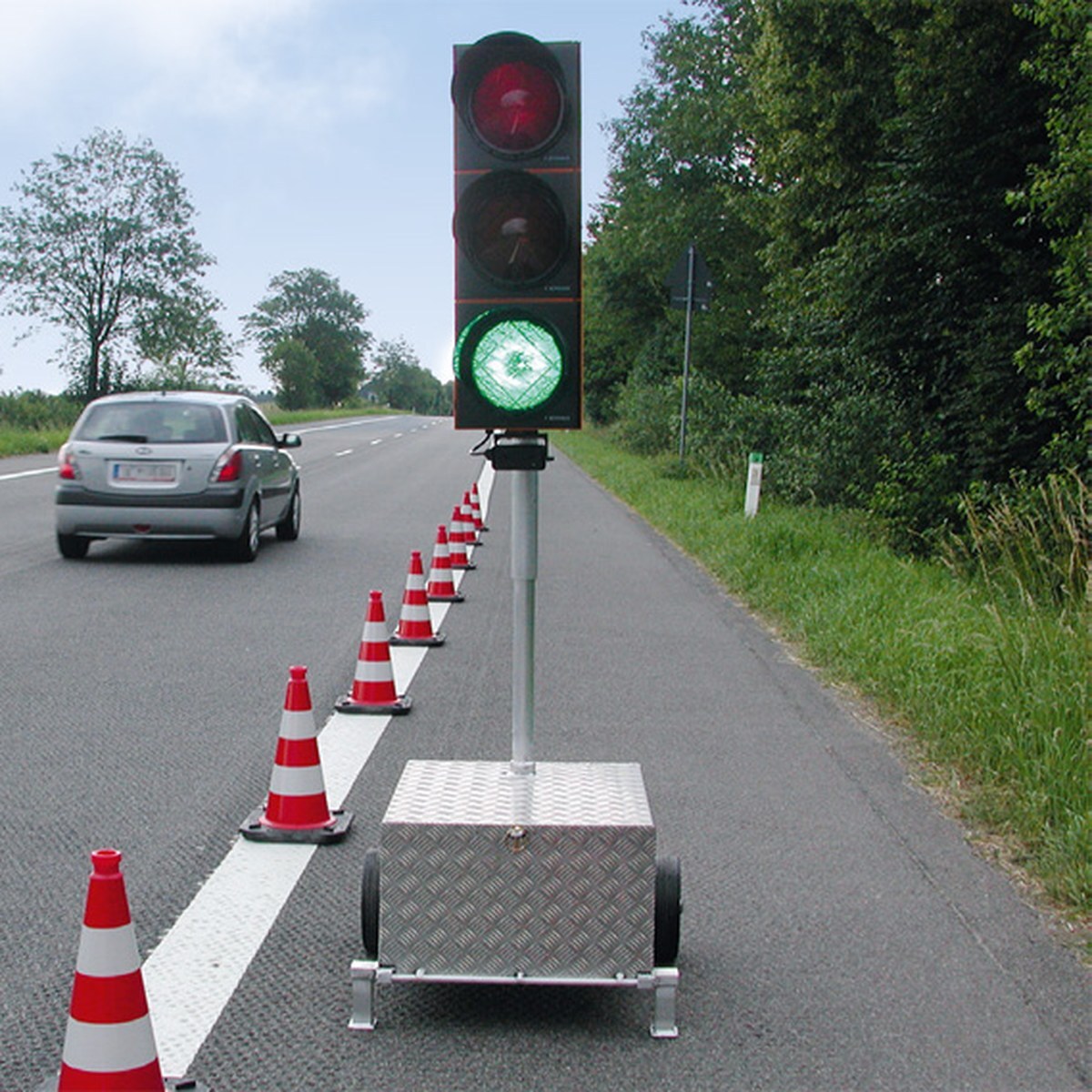

Roadworks and construction sites with alternating one-way traffic, T-junctions and crossroads, tree felling, and short-term traffic control where a quick, simple setup is needed.
