ProGuard CB803 Vehicle Barrier, 2.9 m concrete-core element

ProGuard CB803 Vehicle Barrier, 2.9 m concrete-core element

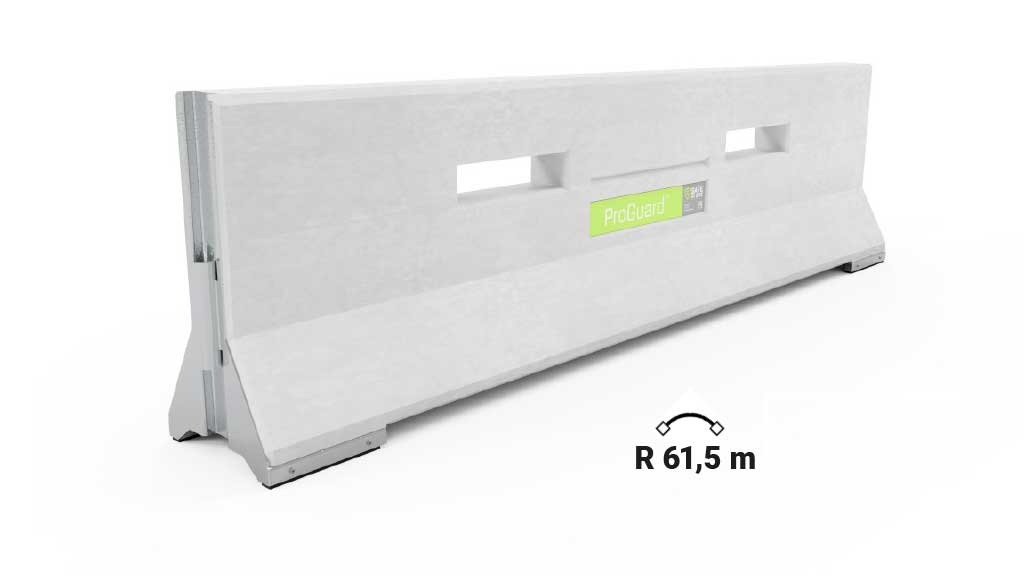

ProGuard CB803 is the 2.9 m version of CB806 for inner-city environments and other locations where space is limited: the same safety and functionality in a compact format. Tested to EN 1317-2 and classified T2/W2, T3/W3 and N1/W5. Minimum radius 61.5 m. CB803 and CB806 elements can be combined in one installation with documented working widths.

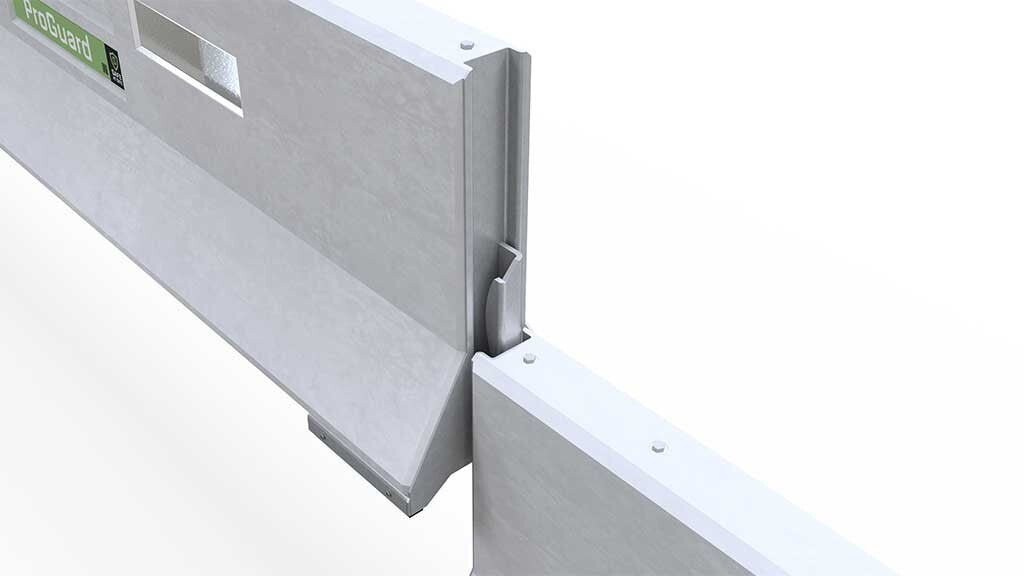

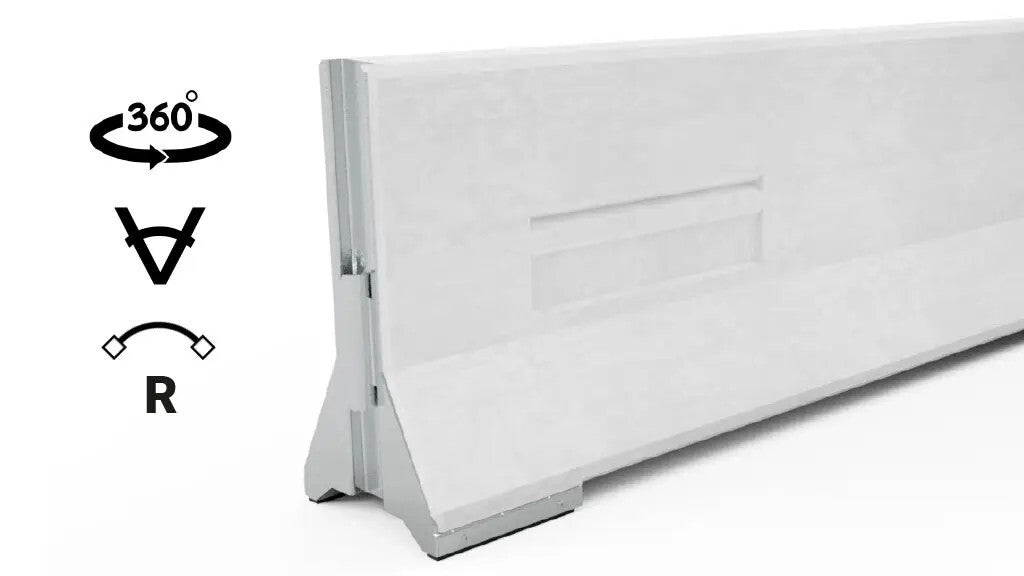

ProGuard CB is the vehicle restraint range for closures against heavy traffic and high speeds, tested to EN 1317-2. The registered-design geometry lets the elements face either direction and be lifted straight up to create openings for emergency access or a temporary gap in the closure. The self-guiding connection reduces the risk of injury during set-up, the elements cope with uneven ground and can be set to a radius down to 61.5 m. Centred fork pockets, three lifting points for a scissor clamp and sockets for lifting eyes give several handling options. Rubber-clad feet maximise friction with the ground, metal end plates extend service life, cast-in sockets on the top accept accessories and signs, and two branding areas on each side make your company visible in traffic.

Technical data

• Length: 2.9 m

• Width: 0.4 m

• Height: 0.8 m

• Weight: 980 kg
