RAS flood alarm system, complete

RAS flood alarm system, complete

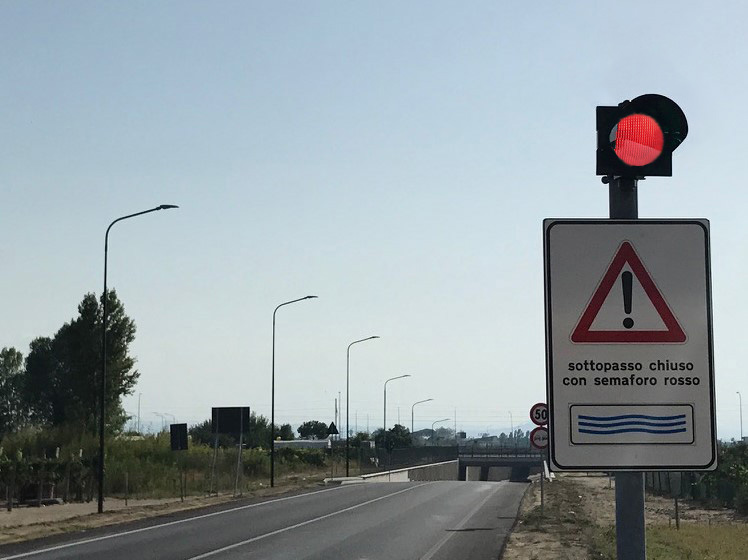

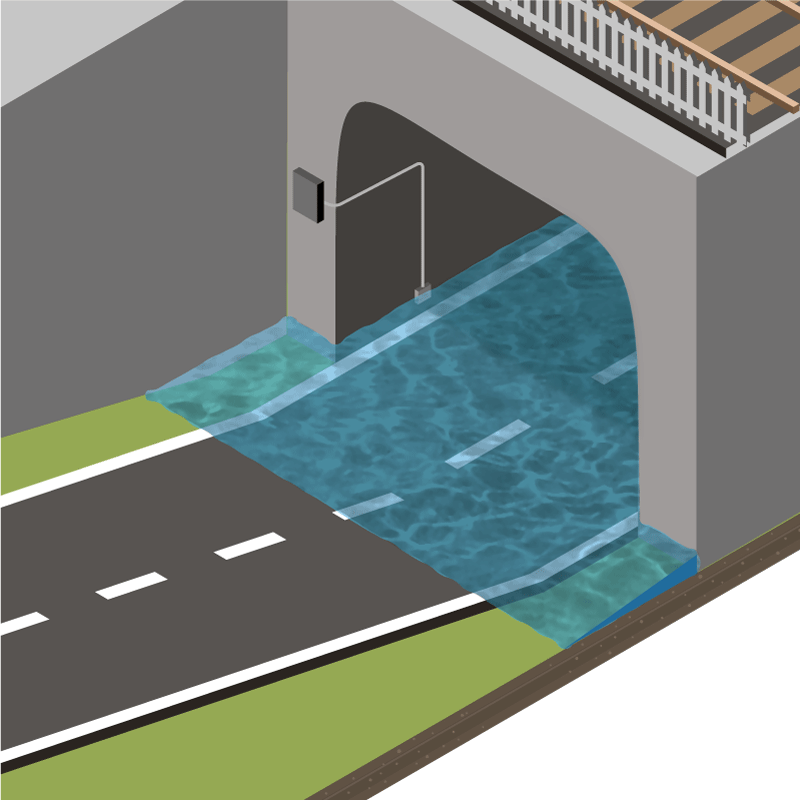

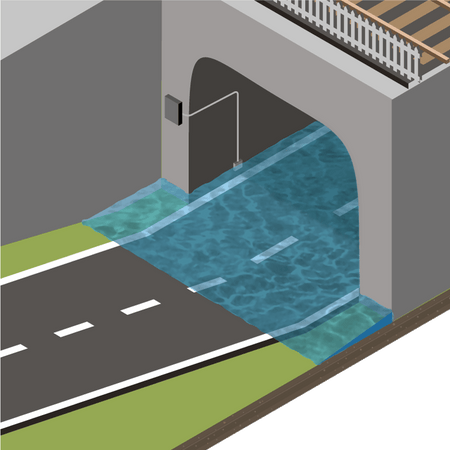

Complete RAS system for warning road users when an underpass or tunnel floods. A capacitive flood sensor installed at the low point detects rising water and signals the control unit, which immediately activates the LED message panel showing FLOODED TUNNEL, the two LED flashers and the red traffic light ahead of the structure, so drivers stop before entering the water. The set covers one approach; further warning devices can be added for the opposite direction.

Included components

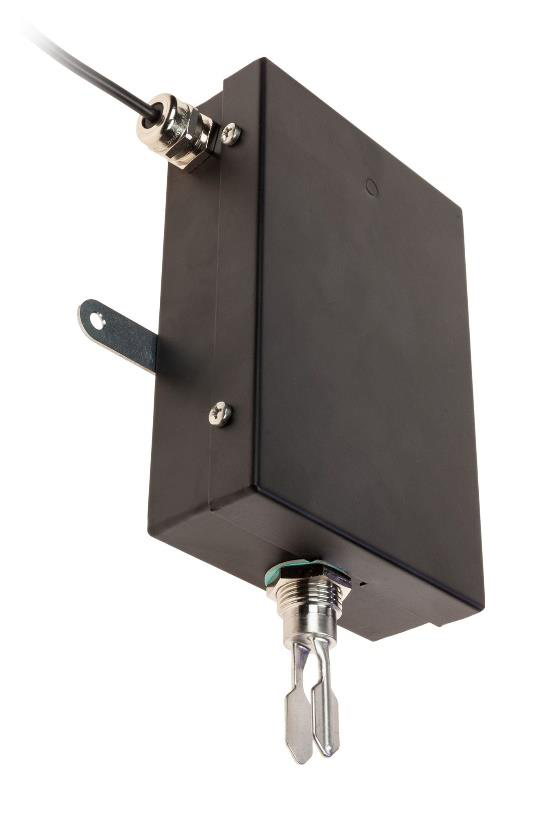

• 1 x RAS flood sensor, capacitive, 13 mm activation level (7823100)

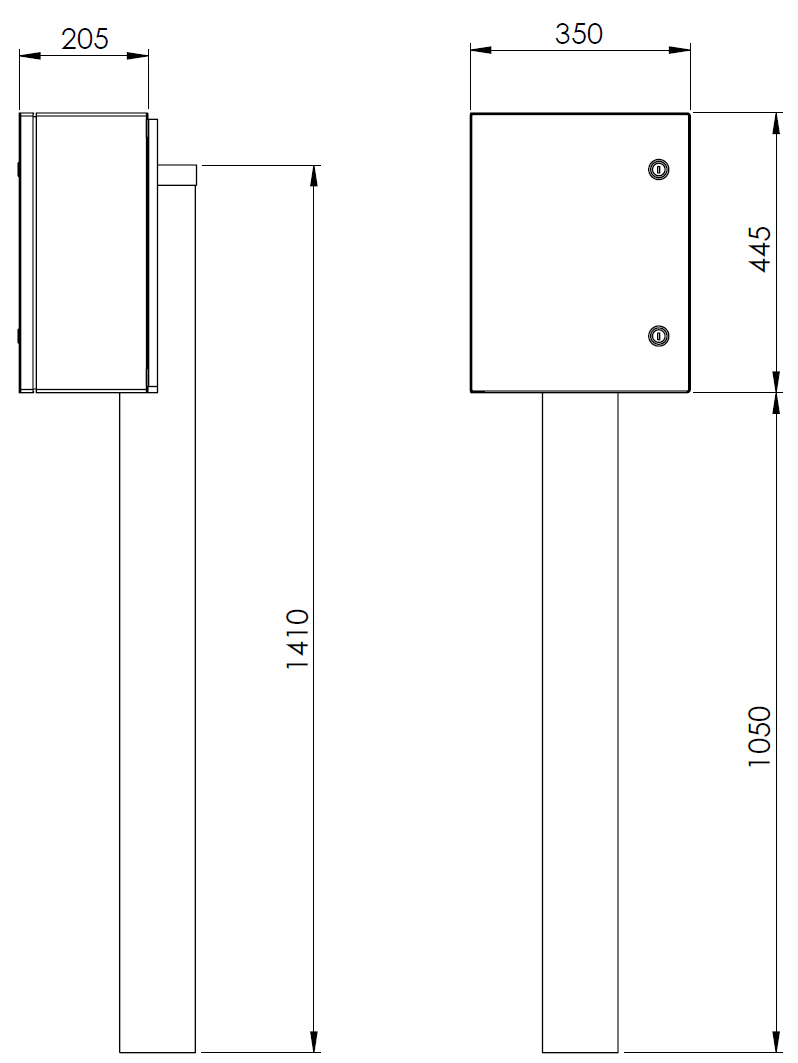

• 1 x RAV/RAS control unit, fibreglass cabinet with post, power supply, timer, flashing control board and battery charging system (7820105)

• 1 x 12 V 18 Ah AGM battery for the control unit (7820110)

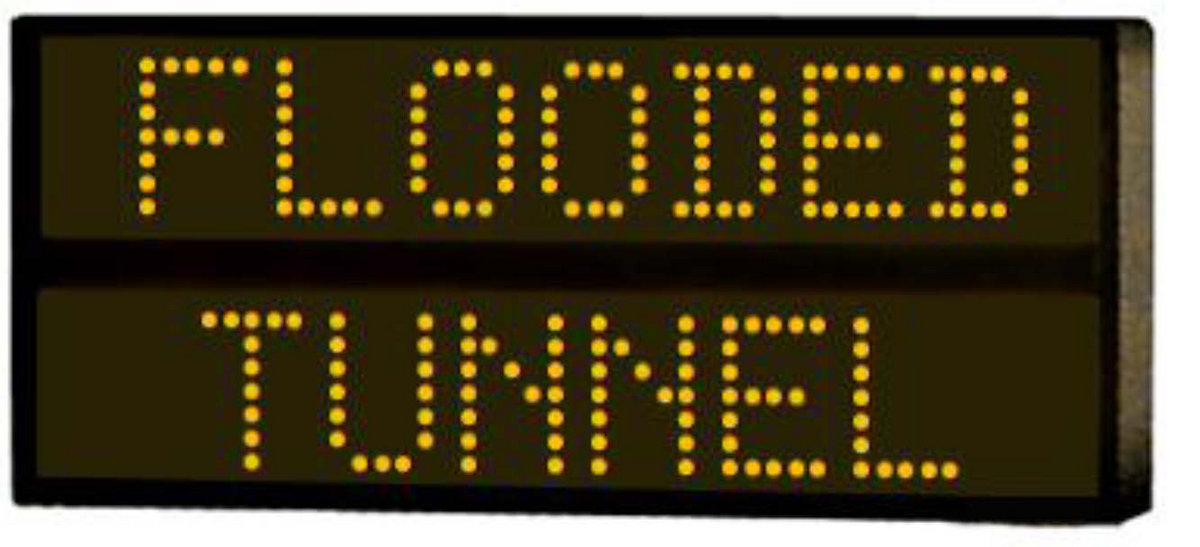

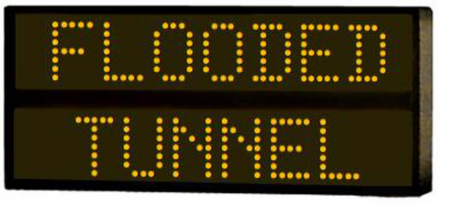

• 1 x RAV LED message panel, 2 lines, 100 mm characters, HEIGHT EXCEEDED / FLOODED TUNNEL (7820109)

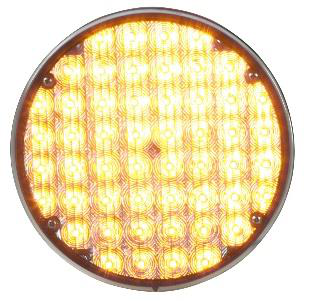

• 2 x RAV Basic 201 LED flasher, 12 V external control (7820114)

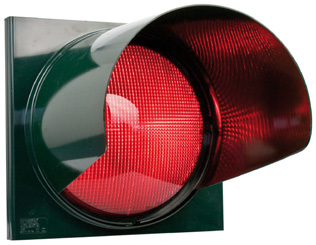

• 1 x RAV red traffic light Ø200 mm, 12 V (7820112)

• 1 x RAV junction box, 3-4 outlets (7820108)

Technical data

• Sensor: capacitive, activation level 13 mm, 10-35 Vdc, 975 mW, IP65, -40 to +70 °C

• Control unit supply: 100-240 Vac, 12 Vdc sensor and output voltages, IP65

• Battery backup: 12 V 18 Ah AGM with integrated charging

• Message panel: amber LEDs, 101 mm character height, 12 Vdc, 28 W, IP55

• Flashers: 2 x Ø200 mm, 52 SMD LEDs, EN 12352 L8H/L8M, IP65

• Traffic light: Ø200 mm red, 12 V

Options

Photovoltaic kit instead of mains supply, 4G router for remote alarm to the responsible authority, additional lights and message panels (up to 2 panels, 8 Basic 201 or 4 Basic 304 flashers and 16 Ø200 mm traffic lights per control unit), Basic 304 flashers and Ø300 mm traffic light for high-speed approaches.

Fields of application

Underpasses, tunnels and low road sections prone to flooding.
