RAS flood sensor

RAS flood sensor

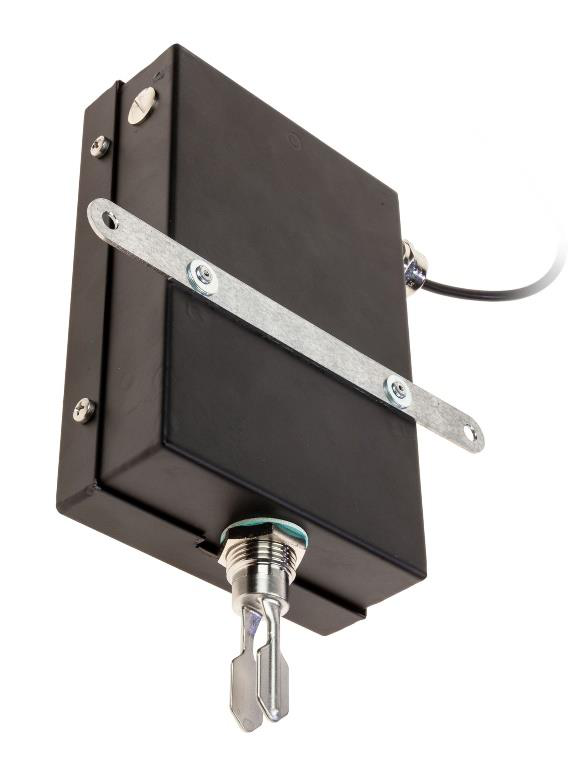

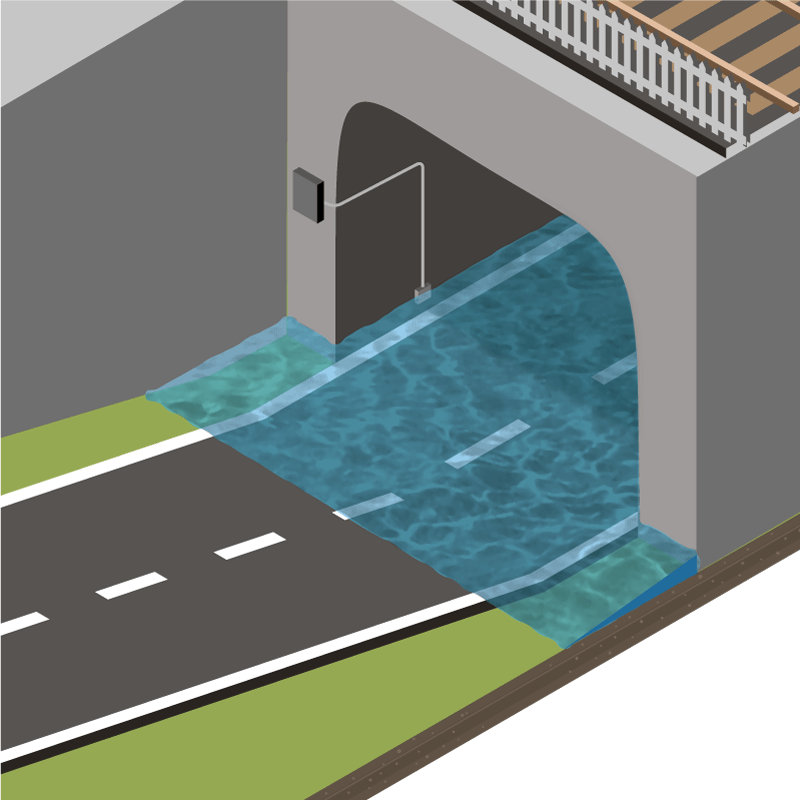

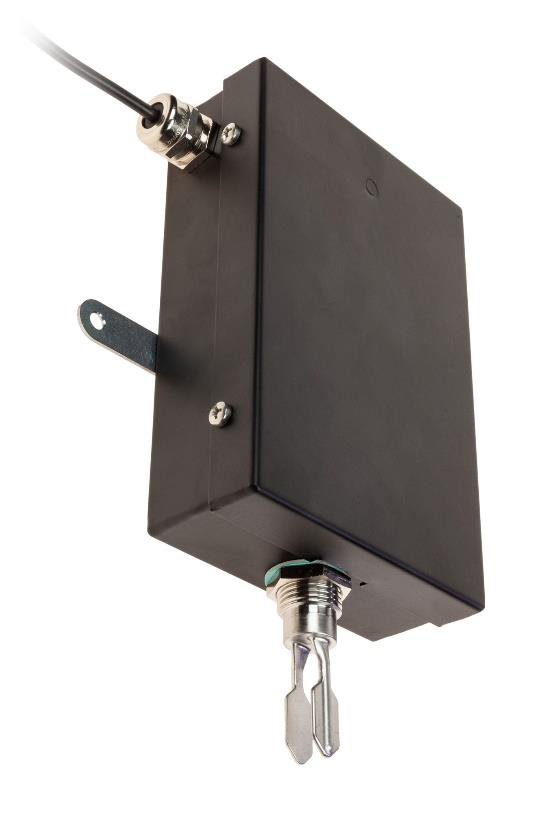

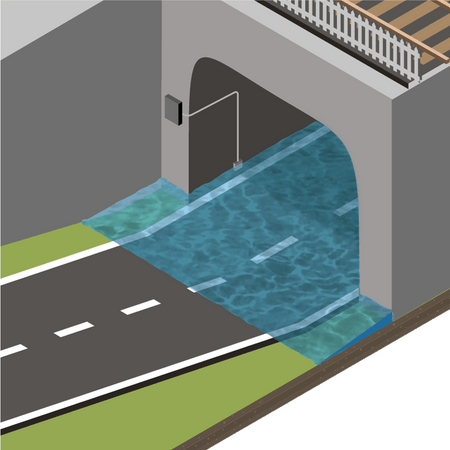

Capacitive water level sensor for the RAS flood alarm system. Installed at the low point of an underpass or tunnel, it detects rising water and signals the RAV/RAS control unit, which then activates the connected warning devices: LED flashers, red traffic lights and the LED message panel showing FLOODED TUNNEL. Drivers are warned before they enter a flooded section. The system can be powered at 230 V or from a photovoltaic kit, and can be integrated with a 4G router to alert the responsible authority.

Features

• Capacitive detection technology, highly reliable

• Activation level 13 mm, no moving parts

• Works with the RAV/RAS control unit and the same warning devices as the RAV overheight system

• Optional 4G router for remote alarm

Technical data

• Power supply: 10-35 Vdc

• Power consumption: 975 mW

• Connections: 4 x 0.75 mm² (power supply +/-, output)

• Level of activation: 13 mm +/- 1 mm

• Insulation class: Class III

• IP protection: IP65

• Material: steel

• Dimensions: 115 x 233 x 48 mm

• Weight: 950 g

• Operating temperature: -40 °C to +70 °C

• Conformity: EMC NE 21, IEC 60529, EN 60068-2-27/64 (shock and vibration)

Fields of application

Underpasses, tunnels and low road sections prone to flooding.
