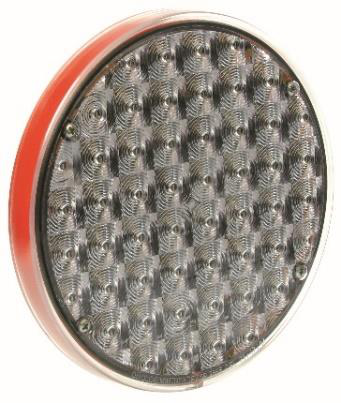

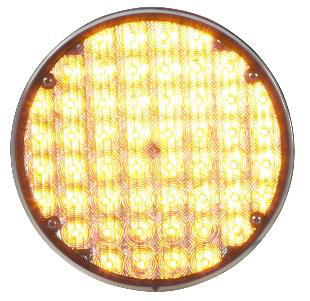

RAV Basic 201 LED flasher, 12 V external control

RAV Basic 201 LED flasher, 12 V external control

Compact Ø200 mm LED flasher used as the warning light on RAV overheight detection and RAS flood alarm systems. The lamp has no internal timer in this configuration; it is switched by the RAV/RAS control unit, which decides between steady light and flashing. Up to 8 units can be driven by one control unit.

Features

• 52 SMD LEDs, single-sided optic

• Amber or red lens

• External control by the RAV/RAS control unit

• Reverse polarity and overvoltage protection

• Optical group life over 50,000 hours

• 4 rear inserts for bracket attachment (bracket not included)

Technical data

• EN 12352 class: L8H/L8M

• Supply: 12 Vdc (11-13 Vdc) or 12/24 Vdc (11-30 Vdc)

• Nominal power: 7.8 W at 12 Vdc

• Nominal current: 650 mA at 12 Vdc

• Operating temperature: -30 °C to +55 °C

• IP protection: IP65

• Lens: polycarbonate, body: PA6

• Dimensions: Ø200 x 25 mm

• Weight: 500 g

• Wiring: 5.1 m 2 x 0.75 mm² cable

Fields of application

Warning light on RAV and RAS installations at underpasses, tunnels and overpasses, mounted on posts or gantries beside the message panel.
