RAV Basic 304 LED flasher, 12 V external control

RAV Basic 304 LED flasher, 12 V external control

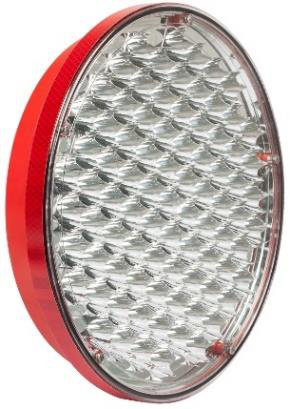

High-output Ø333 mm LED flasher, the larger alternative to the Basic 201 for RAV overheight detection and RAS flood alarm systems. It is switched by the RAV/RAS control unit, which decides between steady light and flashing. Up to 4 units can be driven by one control unit.

Features

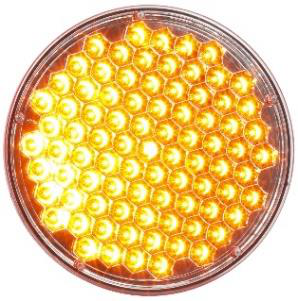

• 85 SMD LEDs, single-sided optic

• Amber or red lens

• External control by the RAV/RAS control unit

• Reverse polarity and overvoltage protection

• Optical group life over 50,000 hours

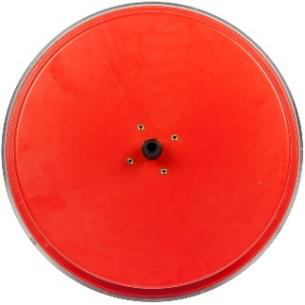

• 4 rear inserts for bracket attachment (bracket not included)

Technical data

• EN 12352 class: L9H/L9M

• Supply: 12 Vdc (11-13 Vdc) or 12/24 Vdc (11-30 Vdc)

• Nominal power: 17.5 W at 12 Vdc

• Nominal current: 1.5 A at 12 Vdc

• Operating temperature: -25 °C to +55 °C

• IP protection: IP65

• Lens: polycarbonate, body: PA6

• Dimensions: Ø333 x 64 mm

• Weight: 1.9 kg

• Wiring: 6 m 2 x 0.75 mm² cable

Fields of application

Warning light on RAV and RAS installations where a larger, brighter flasher is needed, for example on high-speed approaches or wide carriageways.
