Central control unit for the RAV overheight vehicle detection system and the RAS flood alarm system. It powers the sensor, evaluates the detection signal and drives the connected warning devices: LED flashers, red traffic lights and LED message panels. The unit is delivered in a fibreglass cabinet with mounting plate and post, ready for a 12 V 18 Ah Pb AGM battery with integrated charging.

Features

• Power supply, timer and flashing control board in one cabinet

• Flashing output for LED flashers and steady output for message panels

• Set-up for 12 V 18 Ah Pb AGM battery (battery not included) with charging system

• Over-discharge cutoff, overvoltage and overcurrent protection

• Drives up to 2 message panels, 8 Basic 201 or 4 Basic 304 flashers, and 16 Ø200 mm or 8 Ø300 mm traffic lights

Technical data

• Input voltage: 100-240 Vac

• Sensor supply: 12 Vdc

• Flashing output: 12 Vdc

• Steady output (display): 12 Vdc

• Insulation class: Class I

• Operating temperature: -10 °C to 55 °C

• IP protection: IP65

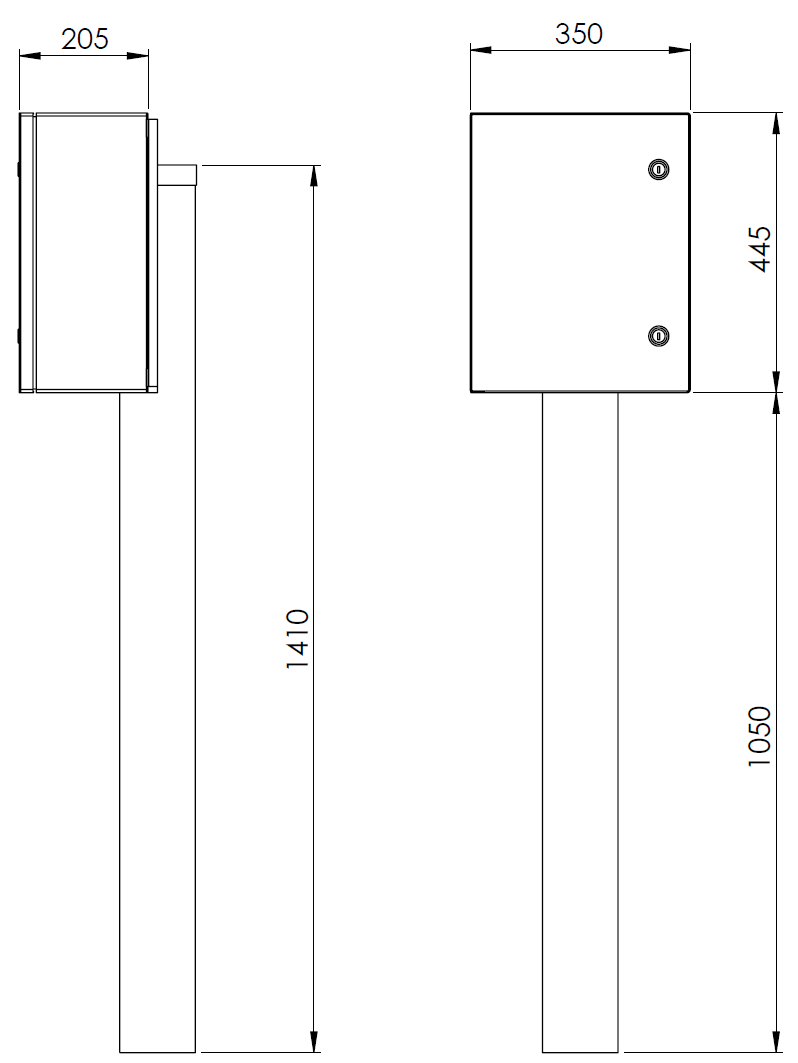

• Dimensions: 350 x 1495 x 205 mm (cabinet 350 x 445 mm on post, Ø120 mm base)

• Weight: 25 kg

• Material: fibreglass

Fields of application

Fixed RAV overheight detection installations at underpasses, tunnels and overpasses, and RAS flood alarm installations at underpasses.
