RAV LED message panel, 2 lines, 100 mm characters

RAV LED message panel, 2 lines, 100 mm characters

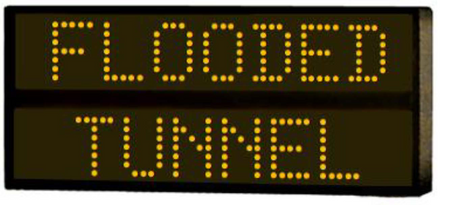

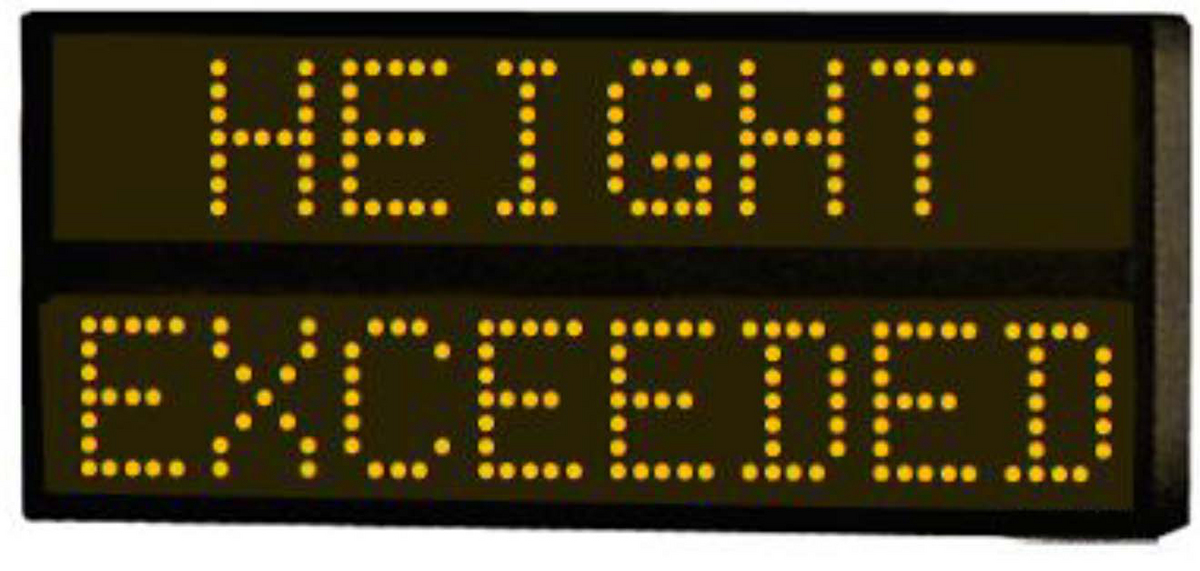

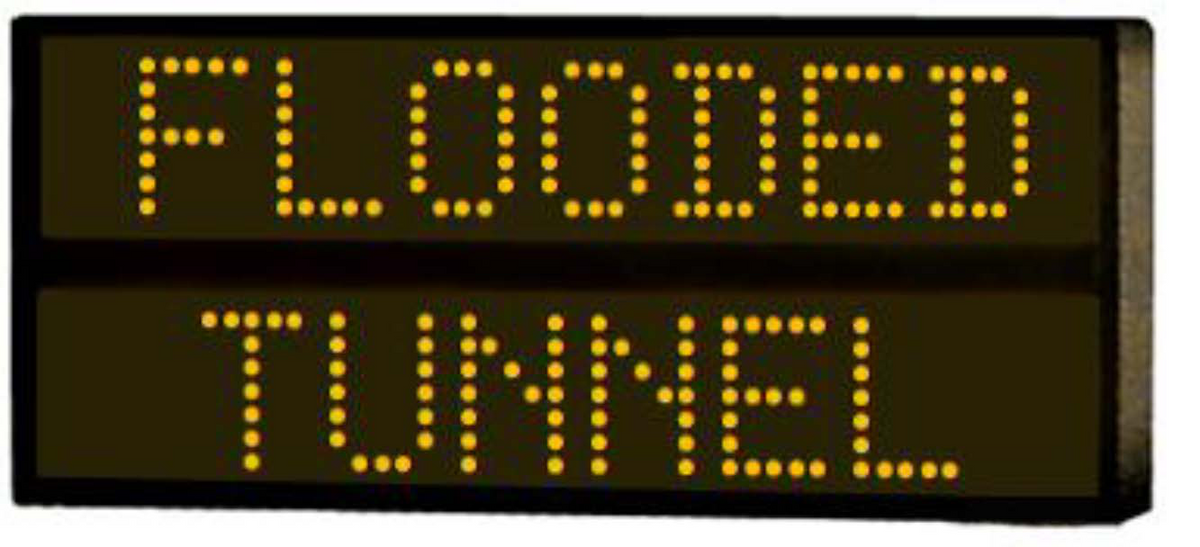

Fixed-message LED panel for the RAV overheight vehicle detection system and the RAS flood alarm system. When the control unit detects an overheight vehicle or rising water, the panel lights up with a two-line warning in amber LEDs. The panel carries two default messages, HEIGHT EXCEEDED and FLOODED TUNNEL, each powered by its own cable so the control unit selects the message to show.

Features

• Two-line display, single-sided

• Amber LEDs, 101 mm character height

• Two power cables, one per message

• Aluminium housing, matte black

• Up to 2 panels per control unit

Technical data

• Lines displayed: 2

• Character height: 101 mm

• Pixel pitch: 16 mm

• LED colour: amber

• Power supply: 12 Vdc

• Power consumption: 28 W

• Insulation class: Class III

• IP protection: IP55

• Operating temperature: -30 °C to +85 °C

• Dimensions: 850 x 380 x 70 mm

• Weight: 7 kg

• Housing: EN AW 6060 aluminium alloy

Fields of application

Underpasses, tunnels and overpasses protected by a RAV system, and flood-prone underpasses protected by a RAS system.
