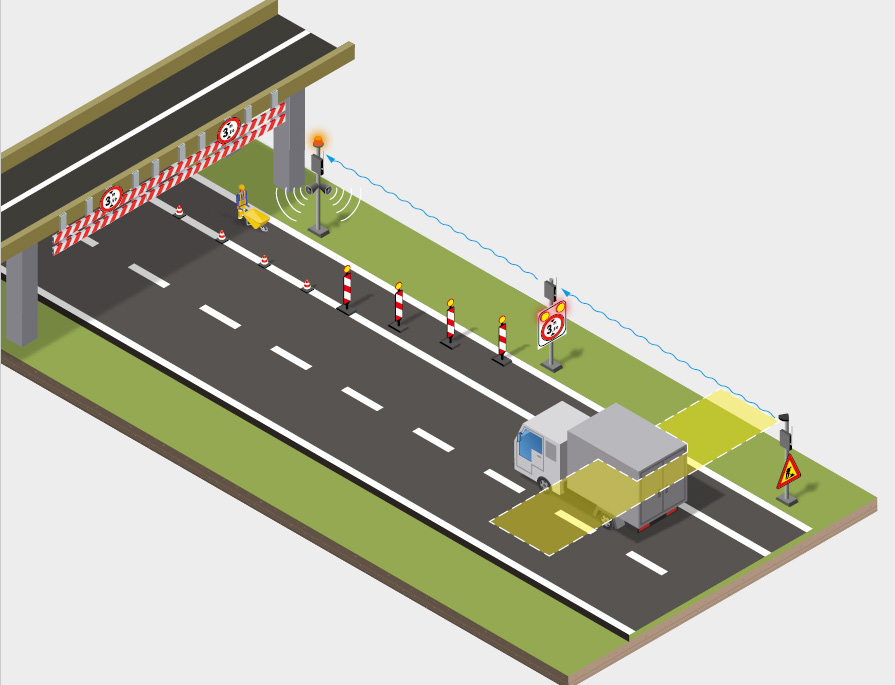

Complete mobile RAV system for temporary protection of roadworks, temporary bridges, gantries and site entrances against overheight vehicles. The laser scanner connects to the master control unit; on detection the master sends the signal over radio to two slave control units, each driving its own warning devices, so the warning is repeated at three positions along the approach without cabling between them. All units run on 12 Vdc and connect with THB plug connectors for fast set-up on site.

Included components

• 1 x RAV mobile master control unit, 12 Vdc with radio modem (7822100)

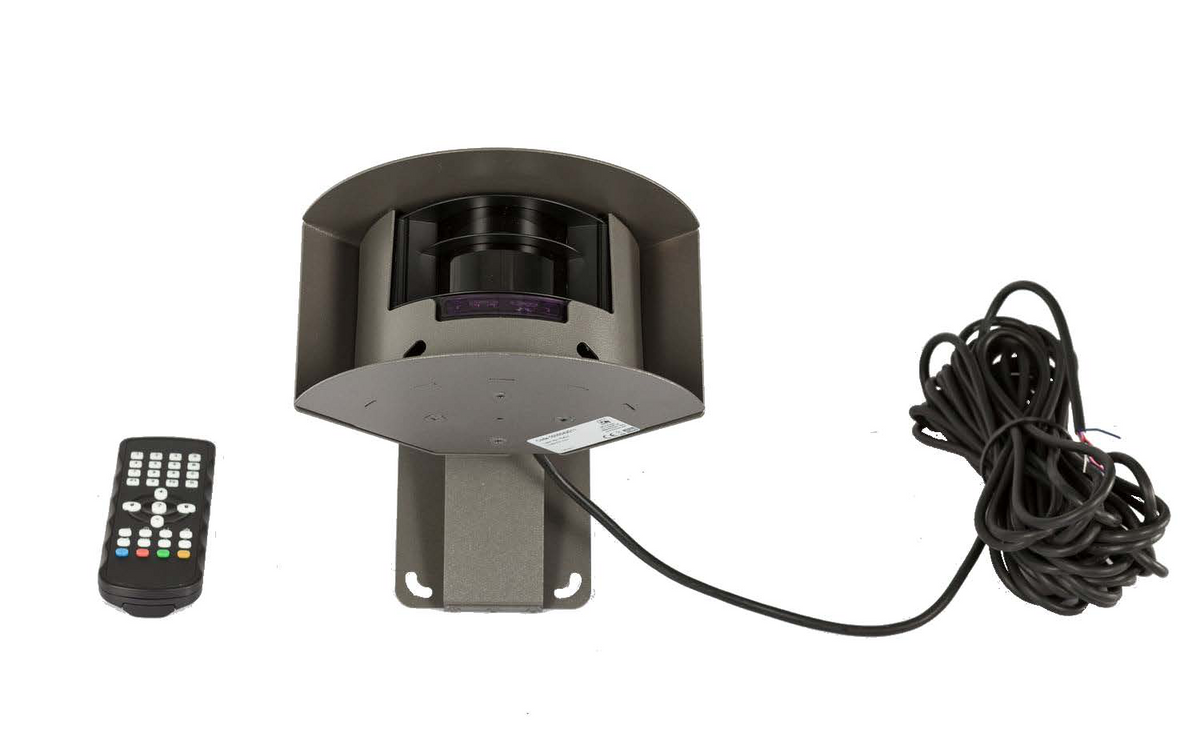

• 1 x RAV laser scanner 10 x 10 m, mobile system, THB 4P, with IR remote control and stainless steel case (7822102)

• 1 x RAV laser scanner bracket, band-it (7820107)

• 1 x RAV mobile slave 1 control unit, 12 Vdc with radio modem (7822106)

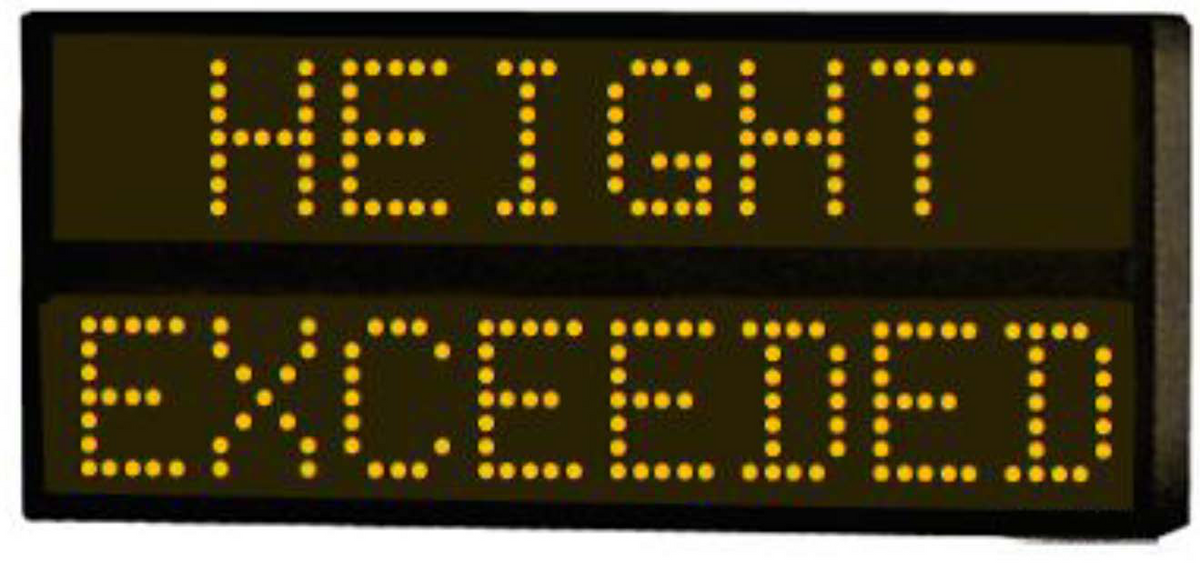

• 1 x RAV LED message panel, 2 lines, 100 mm characters, HEIGHT EXCEEDED / FLOODED TUNNEL (7820109)

• 2 x RAV Basic 201 LED flasher, 12 V external control (7820114)

• 1 x RAV red traffic light Ø200 mm, 12 V (7820112)

• 1 x RAV junction box, 3-4 outlets (7820108)

• 1 x RAV mobile slave 2 control unit, 12 Vdc with radio modem (7822107)

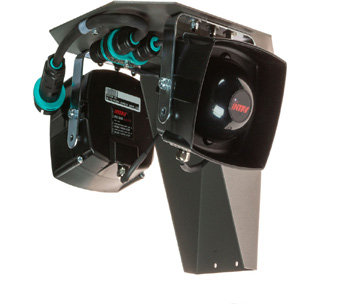

• 1 x RAV speaker with support and THB connector (7822108)

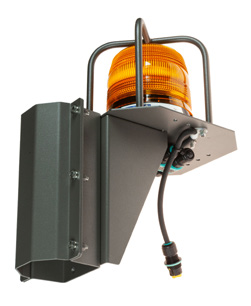

• 1 x RAV LED beacon 12 V amber with THB connector and support (7822109)

• 1 x RAV extension cable 2 m, THB 2-pole M/F (7822110)

Technical data

• Detection area: up to 10 x 10 m, motion and presence detection, programmable via IR remote control

• Control units: 12 Vdc, 288 x 360 mm, radio modem, timer, fixed and flashing outputs

• Message panel: amber LEDs, 101 mm character height, 12 Vdc, 28 W, IP55

• Flashers: 2 x Ø200 mm, 52 SMD LEDs, EN 12352 L8H/L8M, IP65

• Traffic light: Ø200 mm red, 12 V

• Acoustic and visual warning at the structure: speaker and amber LED beacon

Not included

12 V batteries or power source for the control units. Ø60 mm and Ø90 mm pole brackets are available instead of the band-it bracket.

Fields of application

Roadworks, temporary bridges and gantries, construction site entrances and any temporary situation where exceeding the maximum height is a hazard.
