Complete fixed RAV system for protecting an underpass, tunnel, overpass or entrance against overheight vehicles. A single roadside laser scanner detects any vehicle exceeding the set height and the control unit immediately activates the LED message panel, flashers and red traffic light ahead of the structure. The set contains everything needed for one approach; add a second scanner and further lights for a second direction.

Included components

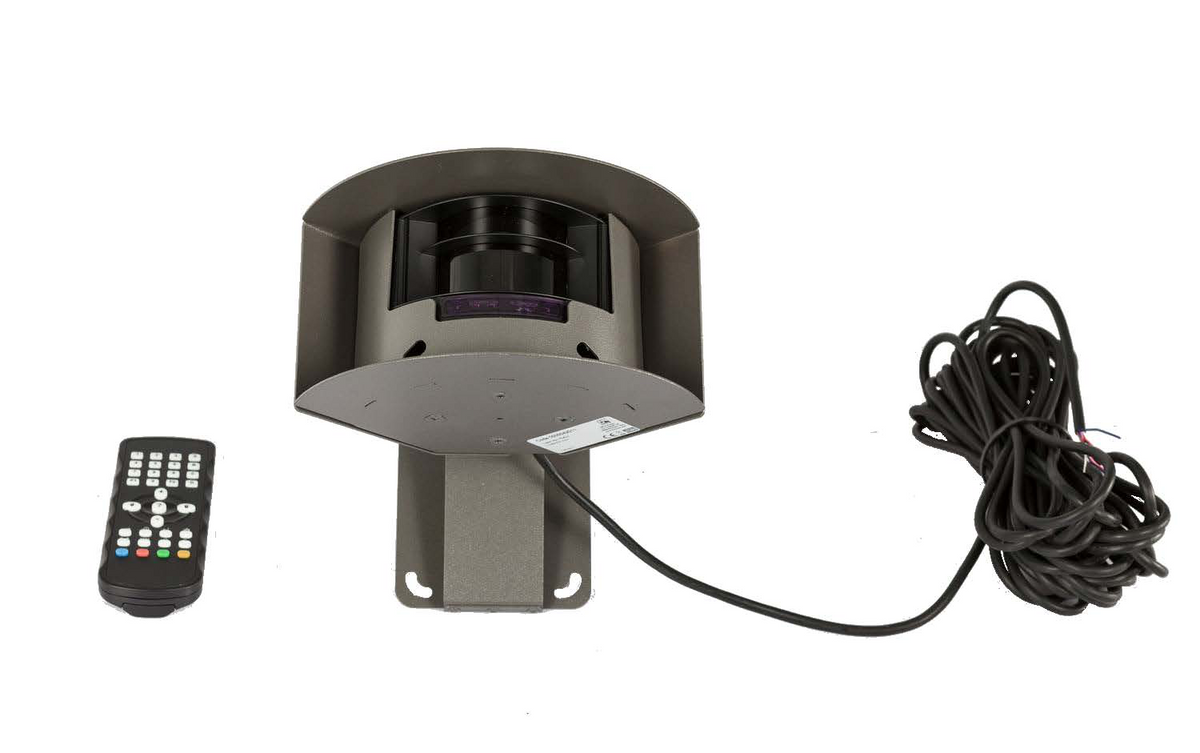

• 1 x RAV laser scanner 10 x 10 m, fixed system, with IR remote control and stainless steel case (7820100)

• 1 x RAV laser scanner bracket, band-it (7820107)

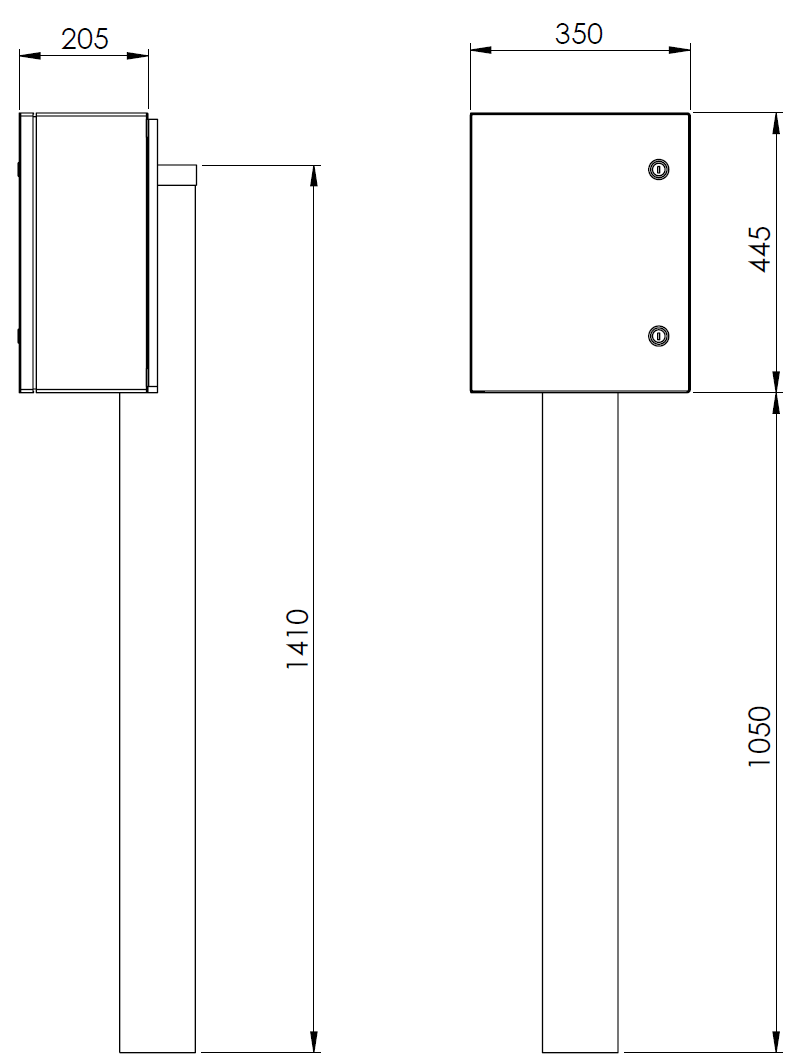

• 1 x RAV/RAS control unit, fibreglass cabinet with post, power supply, timer, flashing control board and battery charging system (7820105)

• 1 x 12 V 18 Ah AGM battery for the control unit (7820110)

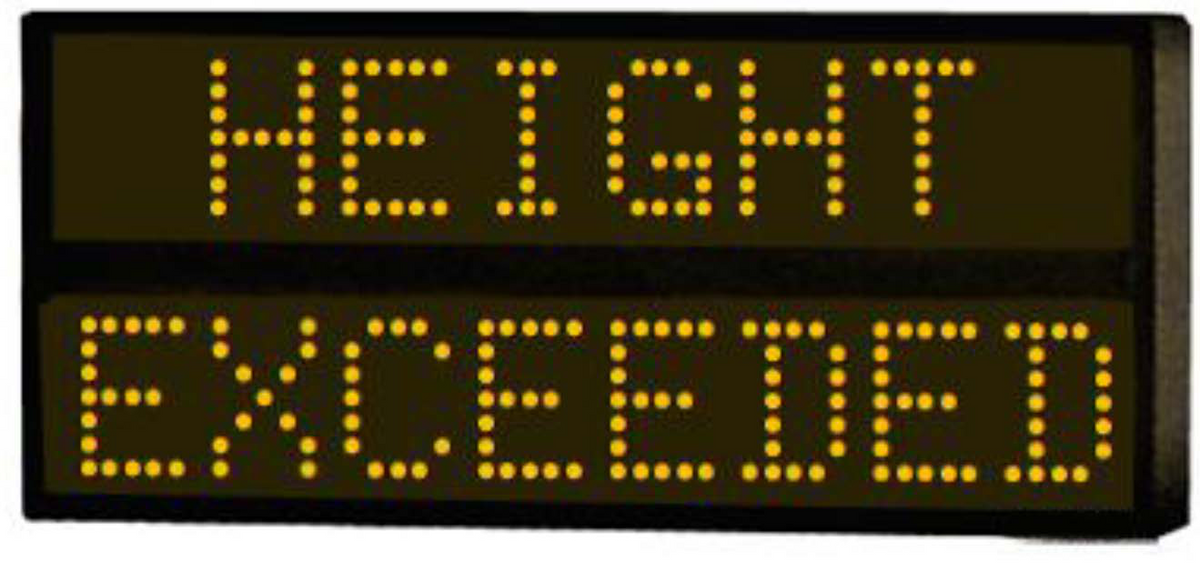

• 1 x RAV LED message panel, 2 lines, 100 mm characters, HEIGHT EXCEEDED / FLOODED TUNNEL (7820109)

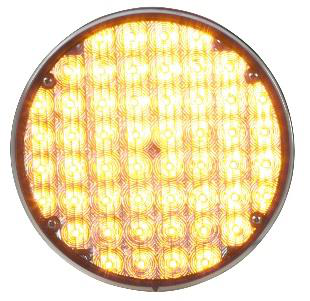

• 2 x RAV Basic 201 LED flasher, 12 V external control (7820114)

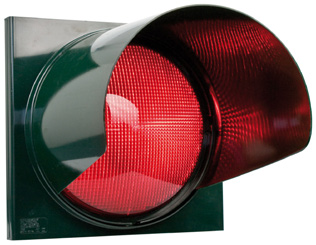

• 1 x RAV red traffic light Ø200 mm, 12 V (7820112)

• 1 x RAV junction box, 3-4 outlets (7820108)

Technical data

• Detection area: up to 10 x 10 m, motion and presence detection, programmable via IR remote control

• Control unit supply: 100-240 Vac, 12 Vdc sensor and output voltages, IP65

• Battery backup: 12 V 18 Ah AGM with integrated charging

• Message panel: amber LEDs, 101 mm character height, 12 Vdc, 28 W, IP55

• Flashers: 2 x Ø200 mm, 52 SMD LEDs, EN 12352 L8H/L8M, IP65

• Traffic light: Ø200 mm red, 12 V

Options

The control unit can drive up to 2 message panels, 8 Basic 201 flashers (or 4 Basic 304) and 16 Ø200 mm traffic lights, so the set can be extended with additional lights, a second scanner for the opposite direction, or the larger Basic 304 flashers and Ø300 mm traffic light for high-speed approaches. Ø60 mm and Ø90 mm pole brackets are available instead of the band-it bracket.

Fields of application

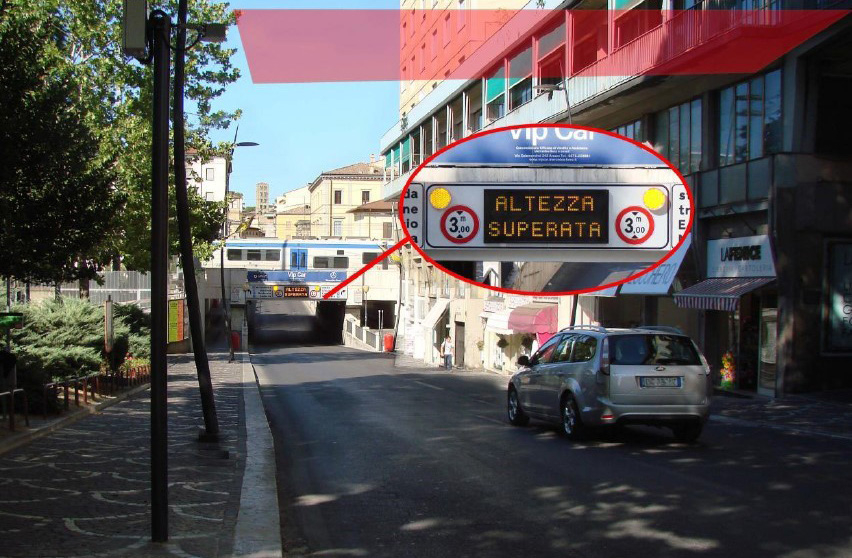

Underpasses, tunnels, overpasses, car park and depot entrances and any other structure where exceeding the maximum height is a hazard.
