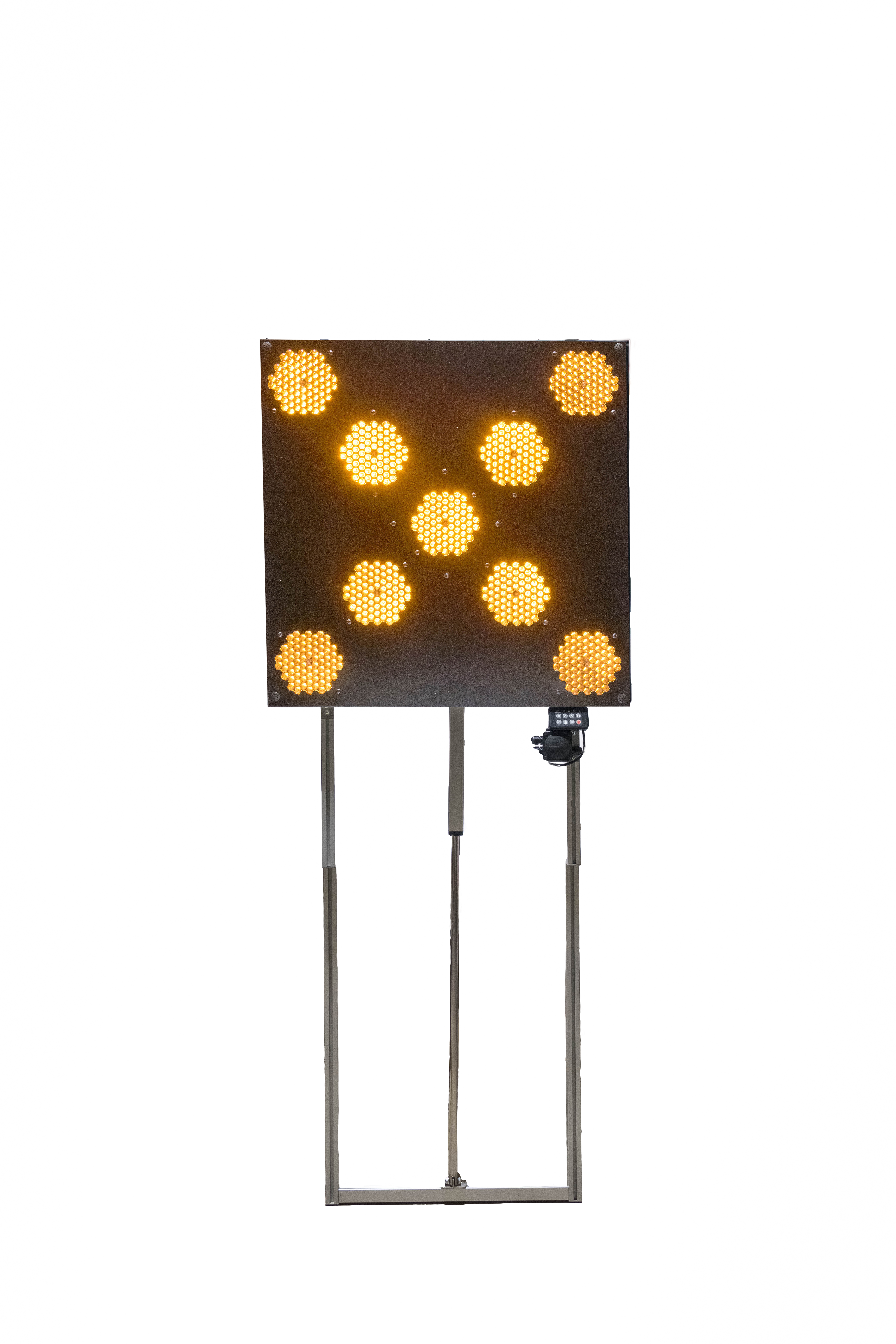

LK9 80 LHS (cable) 140mm LED 80x80cm vertical lift

LK9 80 LHS (cable) 140mm LED 80x80cm vertical lift

Vehicle-mounted warning cross for marking roadwork closures and hazard zones. Under BEK 393/2025 the 80 x 80 cm panel is for vehicles where the standard 105 x 105 cm panel cannot be fitted.

An electric vertical lift raises the panel from the pickup bed behind the driver cab to working height.

Features

• 9 amber Ø140 mm LED lamps, EN 12352 class L2H, 1500 cd each

• Display modes: cross, corner lamps

• Photosensor-driven 5-level automatic dimming

• RS485 canbus control with back-lit operator panel

• Electric vertical lift for pickup-bed mounting behind the driver cab

• Prepared for cable remote control (select the 2+4 or 3x5 cable hand controller separately)

Technical data

• Panel size: 800 x 800 mm

• Lamps: 9 x amber LED, Ø140 mm light opening (Ø150 mm housing), EN 12352 L2H, 1500 cd, 0.42 A per lamp

• Average power consumption (daylight, 12 V): approx. 1.5 A / 18 W, lamps only, 1.5 s cycle with 0.6 s lit

• Supply voltage: 12 V (24 V via external converter kit)

• Housing: matte-black aluminium with stainless-steel frame

• Weight: approx. 31 kg

Fields of application

Vans and light utility vehicles on roadworks and incident response where space for a full-size panel is limited.
