LP15 105 HHS (cable) 200mm LED 105x105cm folding frame

LP15 105 HHS (cable) 200mm LED 105x105cm folding frame

Vehicle-mounted warning arrow for directing traffic around roadworks, incidents and lane closures. The 105 x 105 cm panel is the standard size for vehicles of all weight classes and complies with Danish roadworks regulation BEK 393/2025.

The panel sits on an electric folding frame on the roof or roof rack. It folds flat for transport and raises to working position at the push of a button.

Features

• 15 amber Ø200 mm LED lamps, EN 12352 class L8H, 2200 cd each

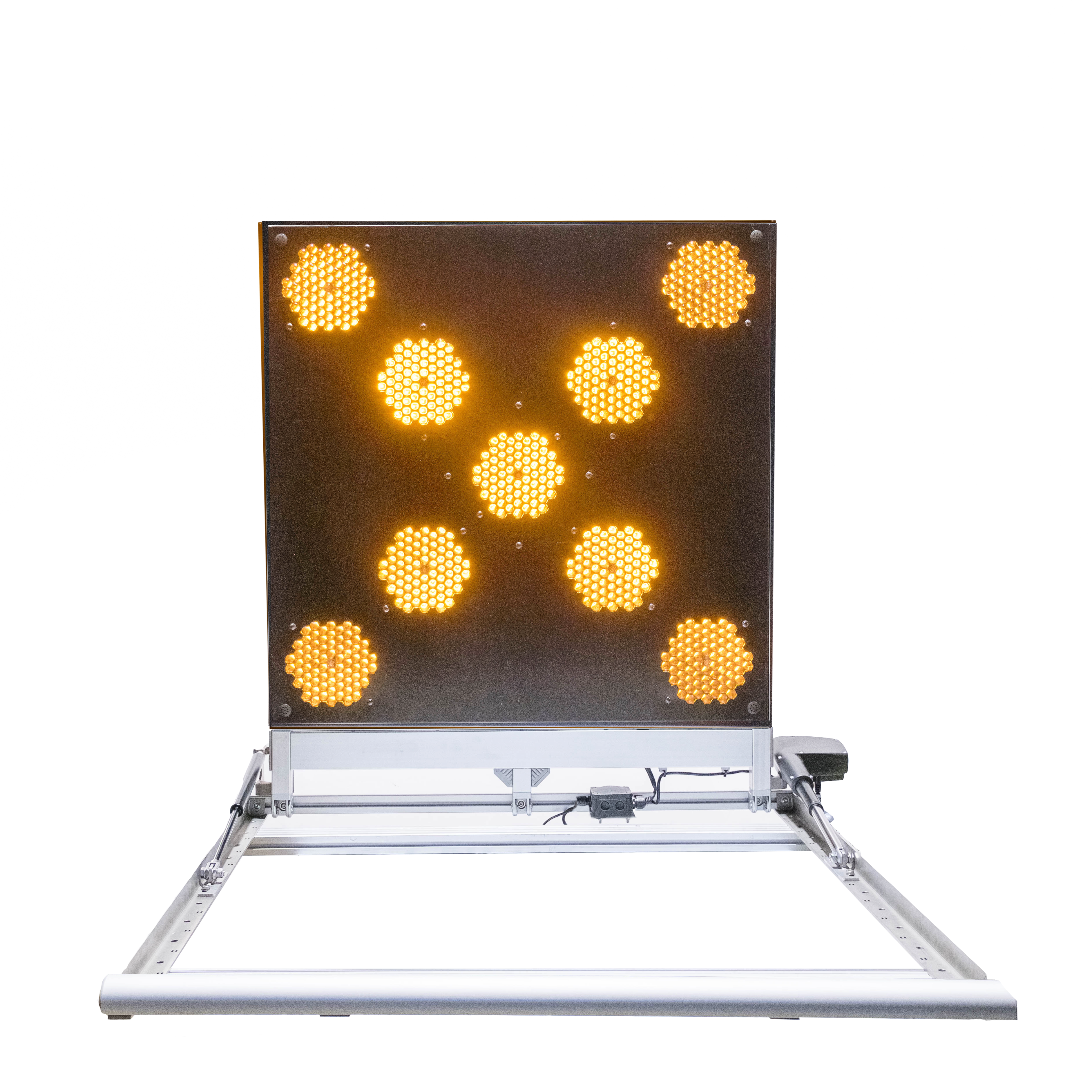

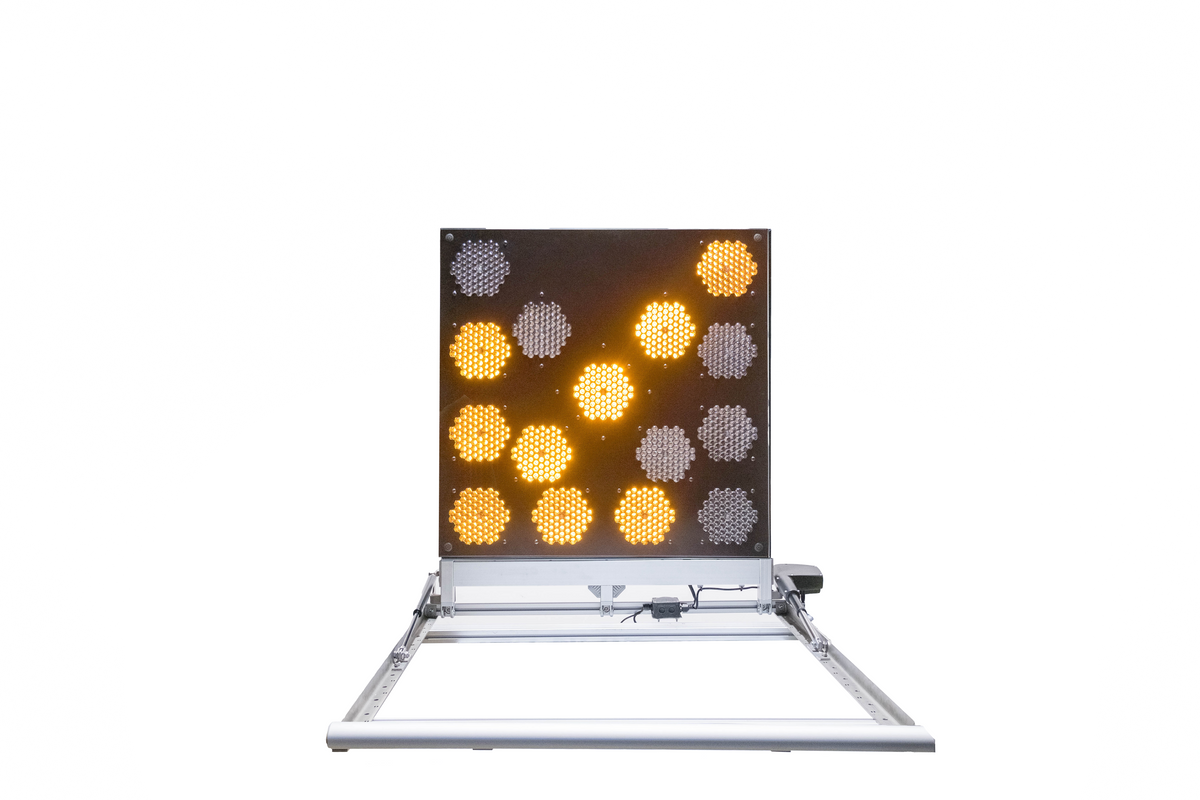

• Display modes: cross, arrow left, arrow right, corner lamps

• Photosensor-driven 5-level automatic dimming

• RS485 canbus control with back-lit operator panel

• Electric horizontal folding frame for roof or roof-rack mounting

• Prepared for cable remote control (select the 2x4 or 3x5 cable hand controller separately)

Technical data

• Panel size: 1050 x 1050 mm

• Lamps: 15 x Ø200 mm amber LED, EN 12352 L8H, 2200 cd, 0.89 A per lamp

• Average power consumption (daylight, 12 V): approx. 3.2 A / 38 W, max. 9 lamps lit, lamps only, 1.5 s cycle with 0.6 s lit

• Supply voltage: 12 V (24 V via external converter kit)

• Housing: matte-black aluminium with stainless-steel frame

• Weight: approx. 36 kg

Fields of application

Road maintenance vehicles, utility trucks and contractor vans working on or beside live traffic.
