LP15 80 HHS (cable) 140mm LED 2x80x80cm double-sided, folding frame

LP15 80 HHS (cable) 140mm LED 2x80x80cm double-sided, folding frame

Vehicle-mounted warning arrow for directing traffic around roadworks, incidents and lane closures. Under BEK 393/2025 the 80 x 80 cm panel is for vehicles where the standard 105 x 105 cm panel cannot be fitted.

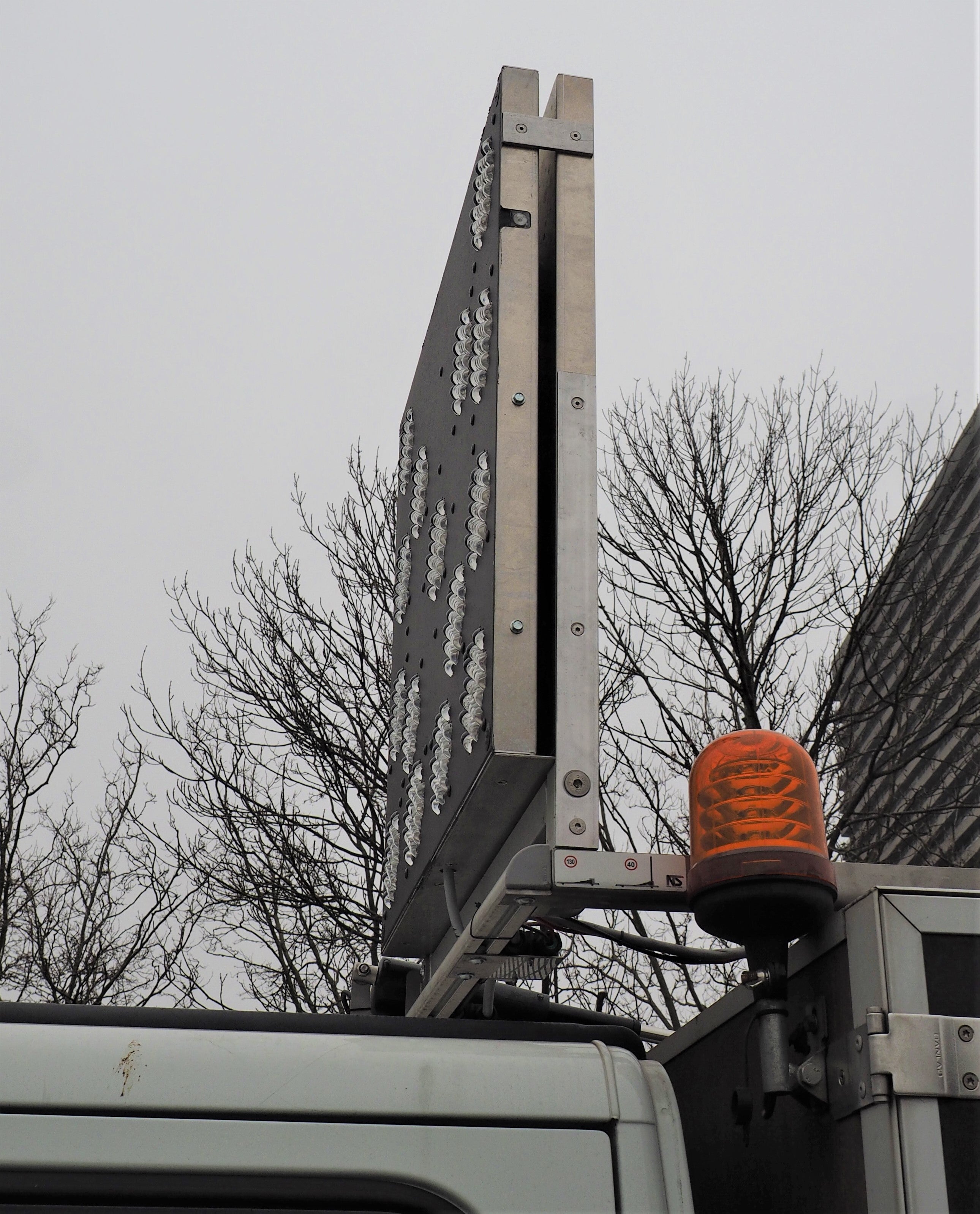

The panel sits on an electric folding frame on the roof or roof rack. It folds flat for transport and raises to working position at the push of a button. Two panels are mounted back-to-back for simultaneous forward and rear visibility.

Features

• 15 amber Ø140 mm LED lamps, EN 12352 class L2H, 1500 cd each, per side

• Display modes: cross, arrow left, arrow right, corner lamps

• Photosensor-driven 5-level automatic dimming

• RS485 canbus control with back-lit operator panel

• Electric horizontal folding frame for roof or roof-rack mounting, carrying two panels back-to-back

• Prepared for cable remote control (select the 2x4 or 3x5 cable hand controller separately)

Technical data

• Panel size: 2 x 800 x 800 mm (one panel per side)

• Lamps: 15 x amber LED, Ø140 mm light opening (Ø150 mm housing), EN 12352 L2H, 1500 cd, 0.42 A per lamp, per side

• Average power consumption (daylight, 12 V): approx. 3.0 A / 36 W (both sides), max. 9 lamps lit, lamps only, 1.5 s cycle with 0.6 s lit

• Supply voltage: 12 V (24 V via external converter kit)

• Housing: matte-black aluminium with stainless-steel frame

• Weight: approx. 50 kg (two panels, frame)

Fields of application

Vans and light utility vehicles on roadworks and incident response where space for a full-size panel is limited.
