Stargate PLUS Emergency-Opening Barrier Gate ENV1317-4 W3 6000mm Module

SKU: 1310010010
Quote required

Custom and bespoke products are priced on request. Build your quote basket and submit when ready — we typically respond within 1 business day.

Review Quote (0)

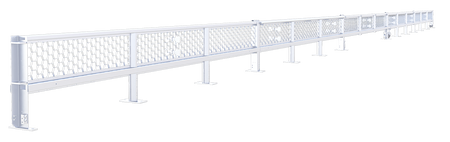

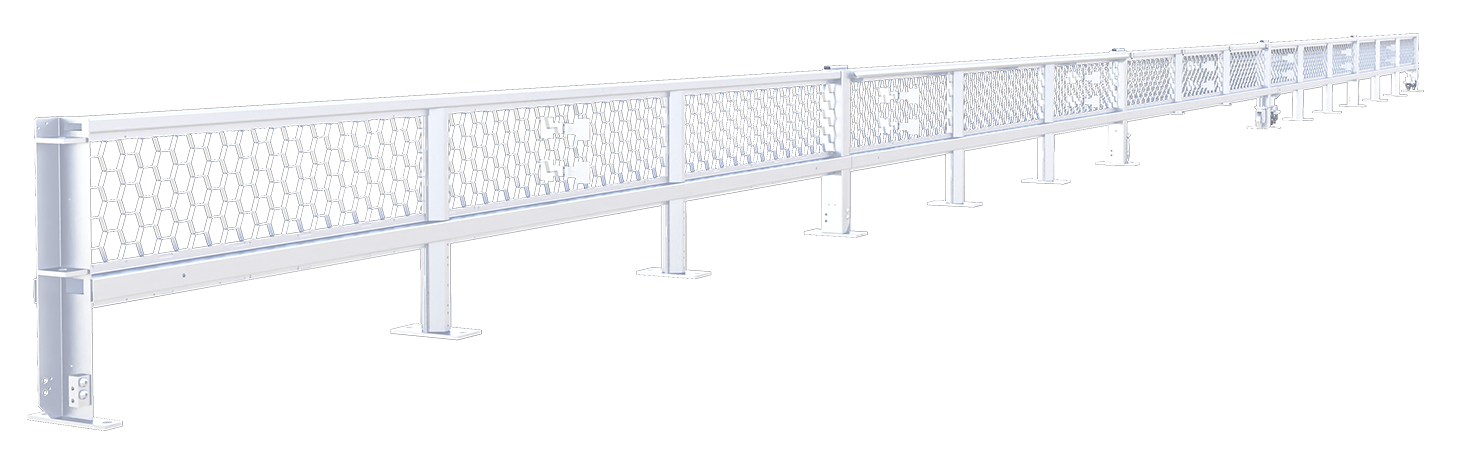

  • Stargate PLUS Removable Barrier Gate with Emergency Opening
  • Compliant with ENV 1317-4
  • Working Width W3
  • Module 6000 mm
  • Width 170 mm
  • Height 1000 mm
  • Pillar spacing 2000 mm
  • Minimum installation length 36 m

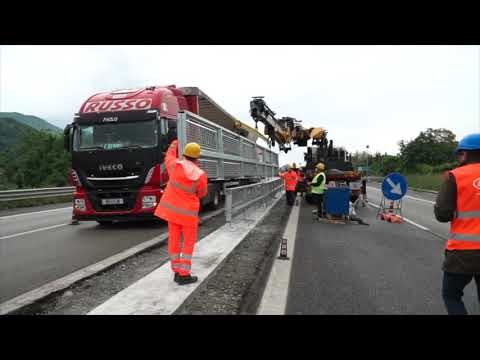

Designed for fast traffic re-routing in emergency interventions and critical situations. Full opening in approximately 10 minutes. Installation on prefabricated base or cast-in-place concrete. Real-world installations on A14 motorway (Bologna ring road) and Milano Serravalle, with transitions to reinforced concrete barriers and guardrails.
