TTMA-200 Complete System Denmark, Rigid Board, LP 27+2, RC2020

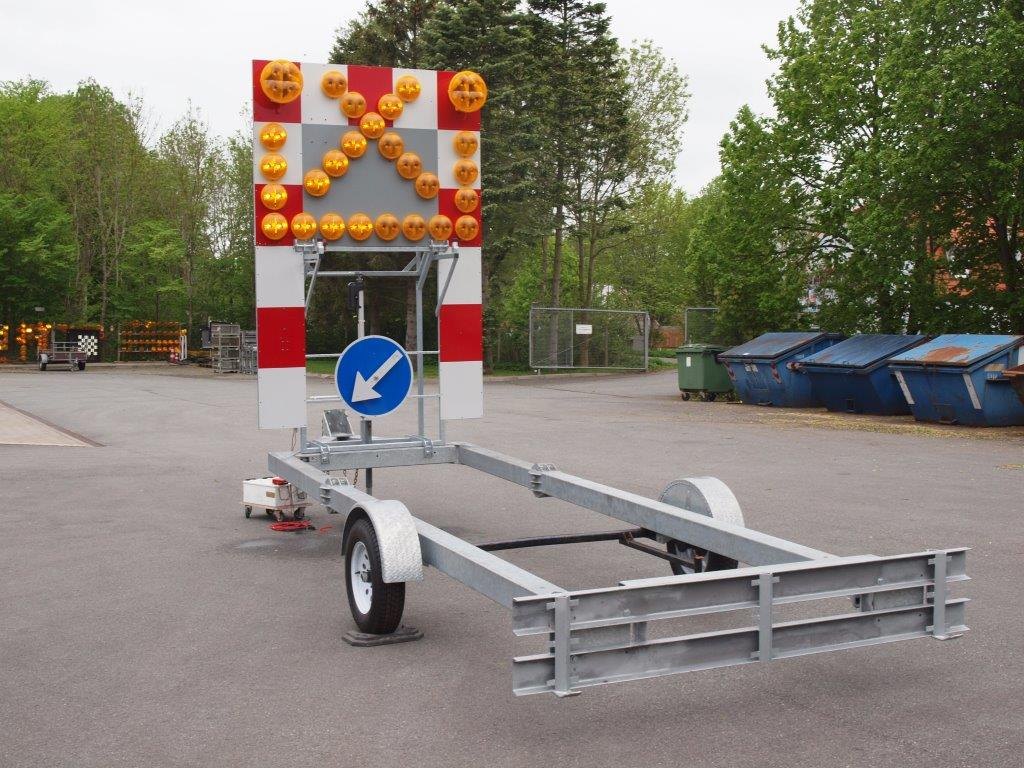

TTMA-200 Complete System Denmark, Rigid Board, LP 27+2, RC2020. Level 4: the complete system with trailer, warning board, light arrow control unit and lamp set, ready for use.

The NTS TTMA-200 is a trailer truck mounted attenuator (TTMA) for road works and mobile work zones. It couples to the towing vehicle's standard draw eye and delivers MASH 2016 TL-3 impact protection without a dedicated TMA vehicle. Impact energy is absorbed by a patented tube-bursting system in which the deformed elements stay attached to the trailer, so no loose parts are thrown towards traffic or workers.

Scope of delivery

• TTMA-200 Trailer Denmark, 1,100 kg, air brakes, fenders, VBG 57.5 mm draw eye, hitch S, trailer lights
• TTMA-200 Warning Board Frame rigid, steel, arrow setting motor, prepared for reflex panels
• TTMA-200 Reflex Panel Set Denmark, aluminium panels with reflex foil and blue sign
• NTS LP28 control unit with RC2020 twin remote, without GSM, without lamps (firmware per bundle)
• NTS lamp set LP 27+2, 27x L8H Ø200 mm and 2x L9H Ø300 mm amber, for the TTMA-200 warning board

Approvals

• Crash tested to AASHTO MASH 2016 Test Level 3 (tests 3-50, 3-51, 3-52, 3-53 and 3-54), all at approx. 100 km/h
• FHWA eligibility letter CC-152

Configuration

• Light arrow firmware: LP 27+2 DK
• Market: Denmark
• Level: L4 of the TTMA-200 product structure
