viafalcon LC radar detector

viafalcon LC radar detector

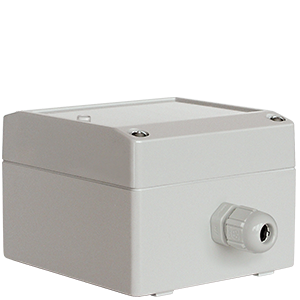

The viafalcon LC is a microprocessor-controlled radar detector for movement and speed detection applications at medium distance range. Its wide detection zone with a 28° x 28° antenna angle reliably covers vehicles and pedestrians, approaching and/or leaving, with adjustable detection direction; cars are detected at up to 100 m.

If the adjustable speed threshold is exceeded, the detector sets its signal output (relay) for an adjustable hold time, for example to request or extend a green phase at an intersection, or to trigger a speed-activated variable message sign. An integrated numeric vehicle counter, adjustable detection sensitivity and parameter setting via the serial RS232 interface (or optionally manually through switches) complete the compact package.

Features

• Medium detection range: up to 100 m (cars)

• Wide detection zone with 28° x 28° patch antenna

• Detects vehicles and pedestrians, approaching and/or leaving (uni- or bidirectional)

• Relay signal output with adjustable speed threshold and hold time

• Integrated numeric vehicle counter

• Adjustable detection sensitivity

• Parameter setting via serial RS232 interface, optionally manually through switches

Technical data

• Sensor type: CW stereo-Doppler radar, planar module

• Transmit frequency & power: 24.165 GHz / 100 mW (EIRP)

• Detected speed range: 0.5-255 km/h

• Power supply (nom / min-max): 12 V / 8-60 V DC

• Current consumption @ 12 V DC: 60 mA

• Signal outputs: 1 relay, LED; data outputs: no

• Interface: RS 232 (ASCII, 8N1, 9600 Baud), for parameter setting

• Operating temperature range: -40° to +70° C

• Housing: 83 x 81 x 60 mm (H x W x D), protection class IP 66

Options

• 230 V version

• Manual parameter setting

• Ball joint fixture for mounting on various posts, fork mounting

Fields of application

Request and extension of green phases at intersections, speed-activated VMS, economic replacement of inductive loops, surveillance of gates and barriers, movement detection
