viafalcon PLUS 2 radar detector

viafalcon PLUS 2 radar detector

The viafalcon PLUS 2 is a microprocessor-controlled radar detector for real-time traffic data output: vehicle speed, a profile value for vehicle classification and the inter-vehicle net time gap, plus movement and speed signalisation through its signal outputs. With its 11° x 11° antenna it is designed for overhead mounting with a lane-selective round radar spot — particularly suitable where each lane must be measured separately.

In tracking mode the detector delivers speed values and sets the signal outputs (relay or 3 optocouplers) according to programmed thresholds. In counting mode, at a typical measurement angle of 45°, it delivers the vehicle speed at beam entrance and the profile value and net time gap at beam exit — while the 3 optocouplers indicate object detected, speed threshold exceeded and profile value exceeded. Various interface versions are available: RS232 (standard), RS232 + relay, RS232 + 3 optocouplers, serial current loop (tty) or RS422.

Features

• Real-time data output: vehicle speed, profile value for classification, net time gap

• 11° x 11° patch antenna for overhead mounting with lane-selective round radar spot

• Detects approaching and/or leaving vehicles (detection direction adjustable)

• Tracking mode with threshold-controlled signal outputs; counting mode at typical 45° measurement angle

• Signal outputs: 1 relay or 3 optocouplers (object detected / speed threshold exceeded / profile value exceeded)

• Adjustable detection sensitivity

• Long range: up to 250 m (cars)

Technical data

• Sensor type: CW stereo-Doppler radar, planar module

• Transmit frequency & power: 24.165 GHz / 100 mW (EIRP)

• Detected speed range: 0.5–255 km/h

• Power supply (nom / min–max): 12 V / 8–36 V DC

• Current consumption @ 12 V DC: 65 mA

• Data outputs: yes; data protocol ASCII, 8N1, up to 57600 Baud

• Interface: RS 232 standard; alternatively RS 232 + relay, RS 232 + 3 optocouplers, tty interface or RS 422

• Operating temperature range: -40° to +70° C

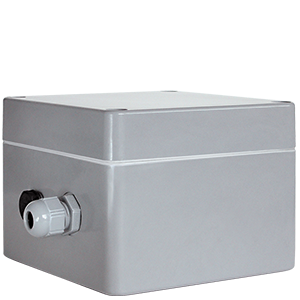

• Housing: 120 x 120 x 90 mm (H x W x D), protection class IP 66

Options

• Integrated male socket with female cable connector

Fields of application

Traffic management systems and traffic data measurement (vehicle counting and classification, net time gap, road occupation, distance calculation), traffic jam warning, tunnel surveillance, traffic density and travel time calculation, numeric speed displays, traffic counter and classifier systems, intelligent warning signs and VMS
