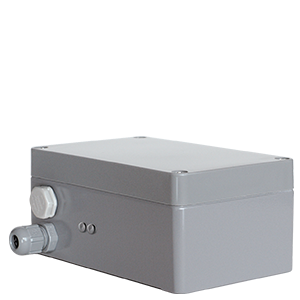

viafalcon SOLAR radar detector

viafalcon SOLAR radar detector

The viafalcon SOLAR is the energy-saving specialist among the viafalcon radar detectors: with an extremely low power consumption of less than 50 mW (3.5 mA @ 12 V) and integrated battery discharge protection for 6 V, 12 V and 24 V systems, it is purpose-built for solar and battery powered standalone applications.

The microprocessor-controlled detector covers long distances — up to 250 m for cars — within a narrow 12° x 17° detection zone, detecting approaching and/or leaving vehicles with adjustable direction. It sets a relay when the speed exceeds or falls below the adjusted threshold, a third relay indicates the vehicle movement direction, and all measured speed values are output numerically via the RS232 interface. The measurement cycle is adjustable between 200 ms and 2.5 s, and detection sensitivity in 5 steps.

Features

• Very low power consumption < 50 mW — ideal for solar and battery powered systems

• Long detection range: up to 250 m (cars)

• Narrow detection zone with 12° x 17° patch antenna

• Detects approaching and/or leaving vehicles (uni- or bidirectional)

• Relay switching on exceeding or falling below the adjusted speed threshold; third relay indicates movement direction

• Numeric data output of all measured speed values via RS232

• Measurement cycle adjustable between 200 ms and 2.5 s

• Detection sensitivity adjustable in 5 steps

• Battery discharge protection for 6 V, 12 V and 24 V systems

• Parameter setting via serial RS232 interface and manually through switches

Technical data

• Sensor type: CW stereo-Doppler radar, planar module

• Transmit frequency & power: 24.165 GHz / 100 mW (EIRP)

• Detected speed range: 5–255 km/h

• Power supply (nom / min–max): 12 V / 5.4–30 V DC

• Current consumption @ 12 V DC: 3.5 mA

• Signal outputs: 3 relays, 2 LED; data outputs: yes

• Interface: RS 232 (ASCII, 8N1, 9600 Baud)

• Operating temperature range: -40° to +70° C

• Housing: 125 x 80 x 57 mm (H x W x D), protection class IP 66

Options

• 230 V version

• Ball joint fixture for mounting on various posts, fork mounting

Fields of application

Battery and solar powered standalone systems, speed displays, speed-activated VMS, over-speed and wrong-direction warning signs, intelligent warning signs, railway surveillance
