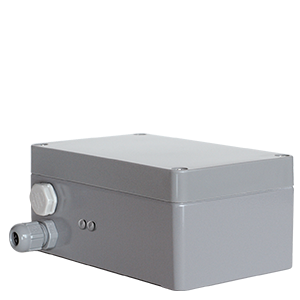

viafalcon TRACK radar detector

SKU: 7810870
Quote required

Custom and bespoke products are priced on request. Build your quote basket and submit when ready — we typically respond within 1 business day.

Review Quote (0)

Got questions?

Feel free to get in touch

viafalcon TRACK radar detector

The viafalcon TRACK is based on the proven viafalcon SOLAR radar detector and adds a complete data logging solution. In addition to the RS232 interface for speed data output and 3 relays for controlling LED signs, the TRACK carries a dedicated data storage board with real-time clock and 4 MB flash memory.

The detector stores the collected data exact to the minute, with a storage capacity of approximately 1.8 million single measurements. Via a second RS232 interface on the storage board, the data can be quickly uploaded using a secured transmission protocol, turning any speed display or intelligent warning sign into a documented measuring station.

Features

  • Based on the viafalcon SOLAR with long range (up to 250 m for cars) and low power consumption

  • Data storage board with real-time clock and 4 MB flash memory

  • Stores data exact to the minute, capacity approx. 1.8 million single measurements

  • Second RS232 interface on the storage board for fast, secured data upload (115200 Baud)

  • 3 relays for controlling LED signs; RS232 speed data output

  • Detects approaching and/or leaving vehicles (uni- or bidirectional)

  • Measurement cycle adjustable between 200 ms and 2.5 s

  • Battery discharge protection for 6 V, 12 V and 24 V systems

Technical data

  • Sensor type: CW stereo-Doppler radar, planar module

  • Antenna: 12° x 17° patch antenna

  • Transmit frequency & power: 24.165 GHz / 100 mW (EIRP)

  • Detected speed range: 5-255 km/h

  • Power supply (nom / min-max): 12 V / 5.4-30 V DC

  • Current consumption @ 12 V DC: 20 mA

  • Signal outputs: 3 relays, 3 LED; data outputs: detector and data storage board

  • Interfaces: detector RS 232 (9600 Baud), data storage board RS 232 (115200 Baud), ASCII 8N1

  • Operating temperature range: -40° to +70° C

  • Housing: 125 x 80 x 57 mm (H x W x D), protection class IP 66

Options

  • Ball joint fixture for mounting on various posts, fork mounting

Fields of application

Speed displays, speed-activated variable message signs and intelligent warning signs where speed measurement is to be combined with time-stamped data storage
