viasis LITE PLUS speed display

SKU: 7810825
Quote required

Custom and bespoke products are priced on request. Build your quote basket and submit when ready — we typically respond within 1 business day.

Review Quote (0)

Got questions?

Feel free to get in touch

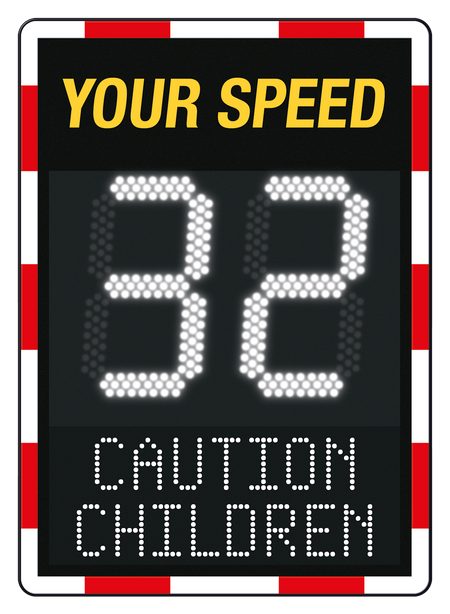

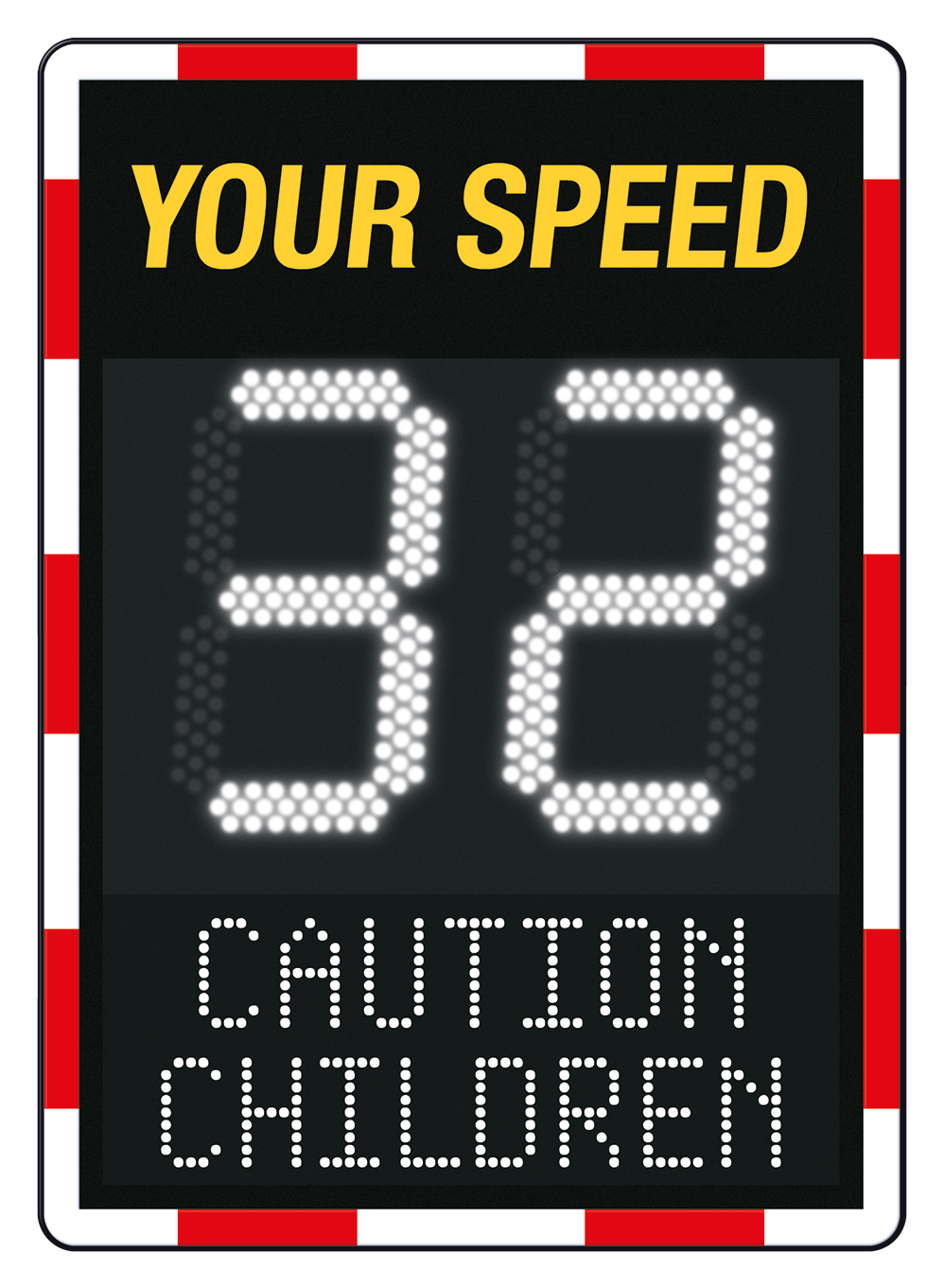

viasis LITE PLUS speed display

The viasis LITE PLUS extends the popular viasis LITE with a lower multicolour text and symbol display: alongside the large 2-digit speed readout, it can show single- and double-line texts as well as symbols in full RGB colour, from "THANK YOU" to warning messages, smileys or your own graphics.

16 text and symbol pages are preset and can be completely redesigned at any time using the LED editor. The large, long-distance visible display sits in an impact-resistant, UV-stable lightweight housing, and the new multicolour LEDs offer speed-display options in 8 different colours. Data storage, smile function, Bluetooth communication, rotary switch and USB interface are all on board.

Features

  • Multicolour text and symbol display (RGB LED) for single- and double-line texts and symbols

  • 16 text and symbol pages preset, completely redesignable at any time with the LED editor

  • Adjustable parameters for minimum and maximum speed, LED colour change, flashing display and new smile function

  • Different parameter settings depending on time and day (5 parameter sets)

  • LED colour change if the speed limit is exceeded (8 colours can be set)

  • Timer and automatic daylight saving time

  • Data storage in a ring buffer (exact to the second)

  • Bidirectional measurement adjustable

  • Battery level indicator

  • Bluetooth communication with viagraph 5 (PC) or app (Android / iOS)

  • USB interface for data download, changing parameters or firmware update

  • Manual parameter selection by rotary switch

Technical data

  • Impact-resistant and UV-stable lightweight housing (ABS/PMMA)

  • 2-digit high-performance LED display with automatic brightness control (digit height 32,5 cm / 12,8")

  • Specially designed protection mask for excellent visibility even in strong sunlight

  • Measuring range 1-255 km/h, display range 1-99 km/h

  • Dimensions: 60,5 x 87 x 15 cm / 23,8" x 34,2" x 5,9" (W x H x D)

Options

  • 230 V and/or solar connection

  • 4G modem + GPS + SIM card + viacloud access

Fields of application

Traffic calming with an added dialogue effect: speed display plus individual messages at town entrances, school zones and accident black spots
